SCM Nova SI 4K 315

SCM Nova SI 4K 315

by WSI Machinery
Sold out
$0.00
SKU

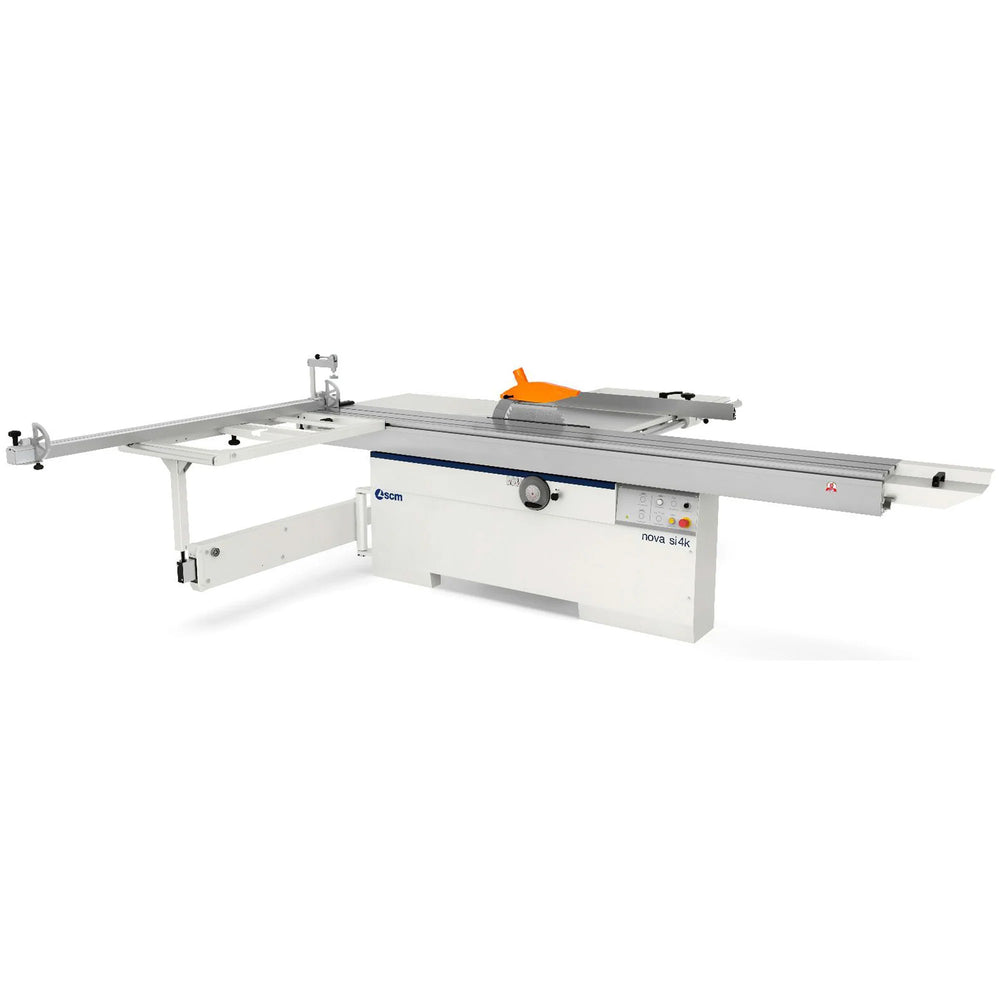

The SCM Nova SI 4K 315 is a professional sliding table saw designed for woodworking workshops, furniture manufacturers, cabinet makers, and joinery professionals. It is engineered for accurate panel sizing, reliable cutting performance, and versatility across a range of woodworking applications.

The machine features a sturdy saw unit, a precision sliding carriage, and an adjustable rip fence for efficient cutting operations. Its 315 mm saw blade configuration provides a maximum cutting height of 100 mm at 90° and 71 mm at 46°. The sliding table supports the accurate positioning and handling of workpieces, while the optional scoring unit helps produce cleaner edges on laminated and veneered panels.

With a robust construction and adjustable cutting components, the Nova SI 4K is designed to support consistent results and efficient everyday production.

  • 315 mm Main Saw Blade: Designed for accurate sizing and cutting of woodworking panels.

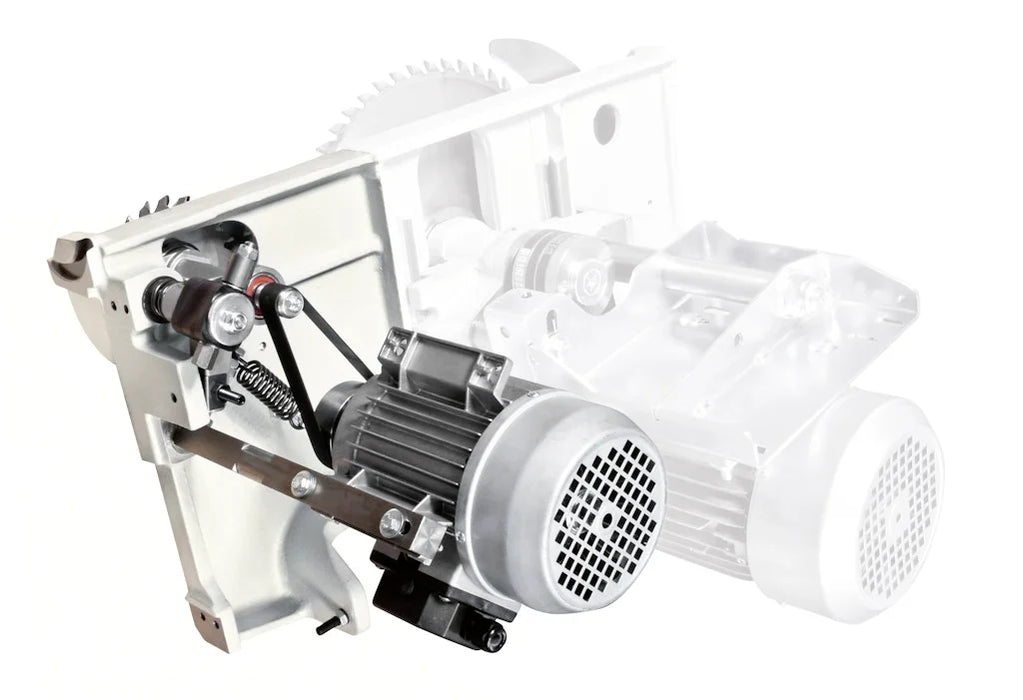

  • Independent Scoring Unit: Helps minimize chipping on laminated and veneered boards.

  • Tilting Saw Blade: Adjustable from 90° to 46° for straight and angled cutting operations.

  • Precision Sliding Carriage: Anodized aluminium carriage with hardened steel guides for smooth movement and positioning.

  • 10-Year Carriage Warranty: SCM specifies a 10-year warranty for the carriage sliding system.

  • Adjustable Squaring Frame: Supports accurate panel positioning, with a telescopic arm and roller for easier loading and unloading.

  • Telescopic Squaring Fence: Includes flip-over stops and a graduated scale for precise measurements.

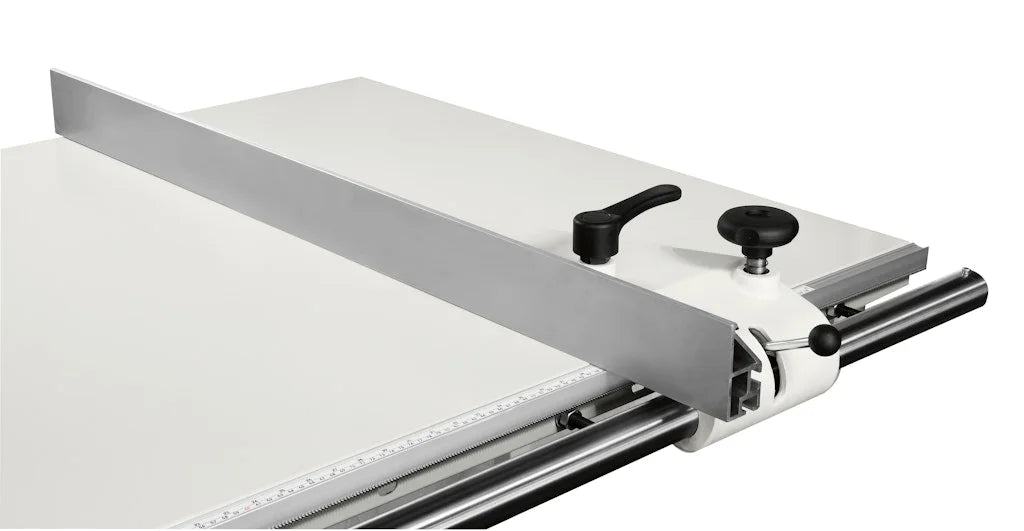

  • Micrometric Rip Fence: Enables fine adjustments for accurate longitudinal cutting.

  • Integrated Dust Extraction: Saw guard and extraction connections help manage sawdust during operation.

  • Enhanced Operator Safety: Includes an emergency stop, overload protection, automatic main-blade brake, and lockable main power switch.

  • SCM Thundercut App: Supports cutting-list optimization, inventory management, guided cutting sequences, and barcode label printing on compatible devices.

  • Practical Accessories: The specified configuration includes a push stick, push handle, trimming shoe, and tool kit.

  • High Cutting Precision: Designed for accurate and consistent cutting of wood panels and sheet materials.

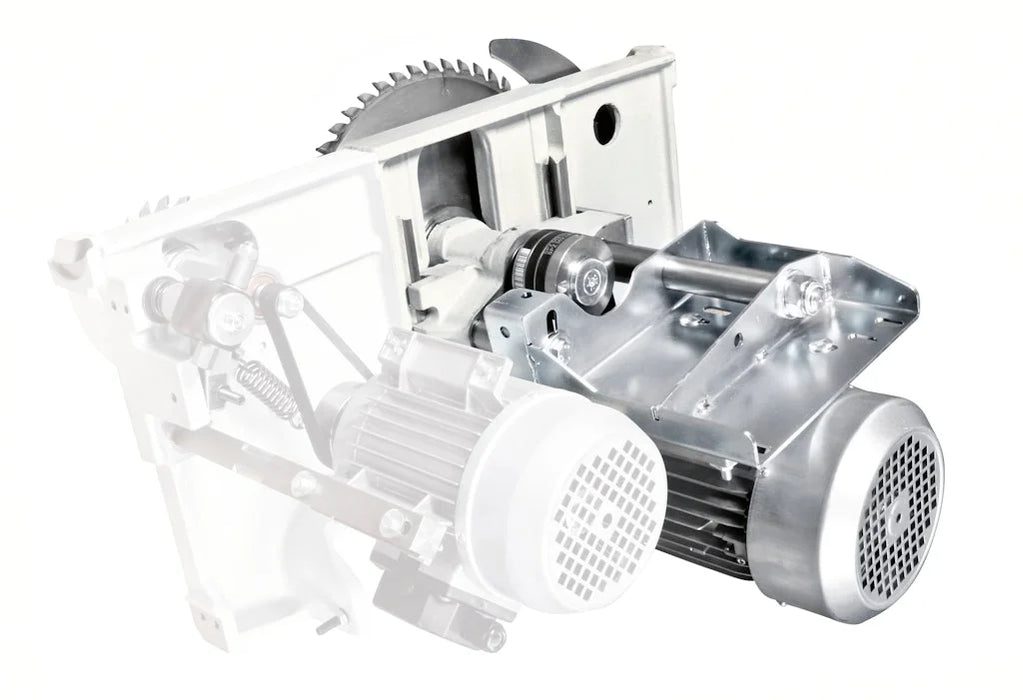

  • Rigid Saw Unit: Solid construction helps maintain blade stability and cutting accuracy.

  • Smooth Sliding Carriage: Anodized aluminium carriage with hardened steel guides for reliable movement.

  • Flexible Panel Handling: Squaring capacity from 2250 to 3800 mm, depending on the selected carriage.

  • Adjustable Rip Fence: Supports precise longitudinal cuts with adjustable cutting widths.

  • Optional Scoring Unit: Helps reduce chipping when cutting laminated and veneered panels.

  • Adjustable Blade Angle: Blade tilting from 90° to 46° for straight and angled cuts.

  • Long-Term Reliability: The sliding carriage system is covered by a 10-year guarantee as specified by SCM.

Technical Specification Details
Brand SCM
Model Nova SI 4K 315
Machine Type Sliding Table Panel Saw
Main Saw Blade Diameter 315 mm
Maximum Cutting Height at 90° 100 mm
Maximum Cutting Height at 46° 71 mm
Blade Tilting Range 90° to 46°
Blade Rotational Speed 4000 rpm
Squaring Capacity 2250–3800 mm
Cutting Width on Rip Fence 900–1270 mm
Main Motor Power 5 kW at 50 Hz
Motor Power at 60 Hz 6 kW
Worktable Material Cast Iron
Sliding Carriage Material Anodized Aluminium Alloy
Carriage Guide System Hardened Steel Guides
Scoring Unit Optional
Manufacturer SCM Group, Italy
