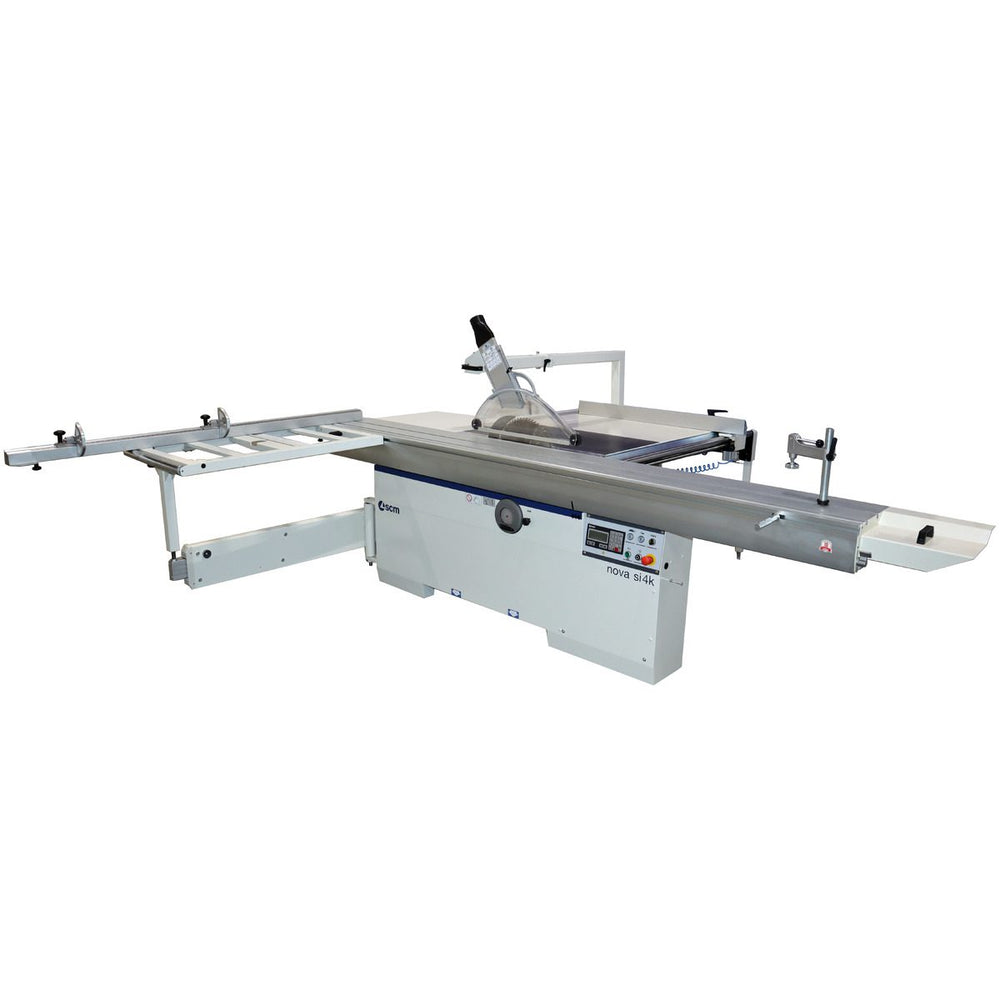

The SCM Nova SI 4K R is a professional woodworking machine developed for cabinet making, furniture production, joinery, and precision panel sizing. Its rigid saw unit, sliding carriage, and adjustable cutting system help deliver accurate and repeatable results across a variety of materials.

The machine features a tilting saw blade, an independently powered scoring unit, and a READY electronic control system that simplifies rip-fence positioning. The system offers continuous, incremental, and automatic positioning modes, with memory for up to 99 programs.

Available in single-phase and three-phase configurations, the Nova SI 4K R can be selected to suit the electrical supply and production requirements of the workshop.

  • READY Electronic Control System: Automatic rip-fence positioning with continuous, incremental, and automatic modes.

  • 99-Program Memory: Store cutting programs for repeat production.

  • Rigid Saw Unit: Designed to maintain blade alignment and reduce vibration during cutting.

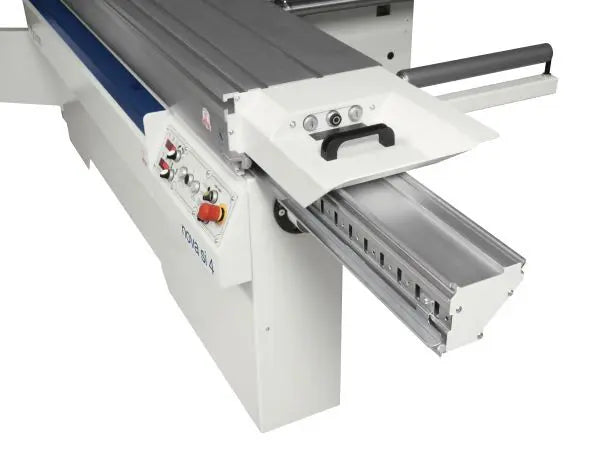

  • Precision Sliding Carriage: Hardened steel guides and an anodized aluminium structure support smooth movement.

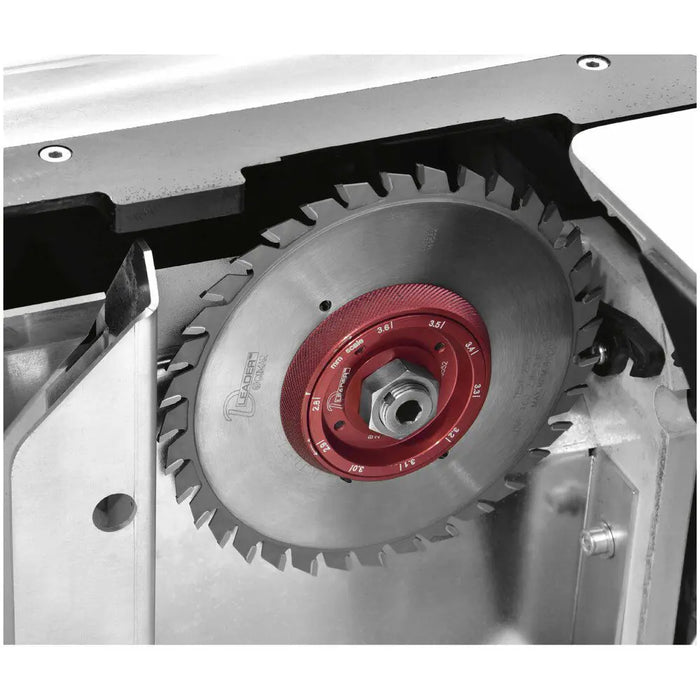

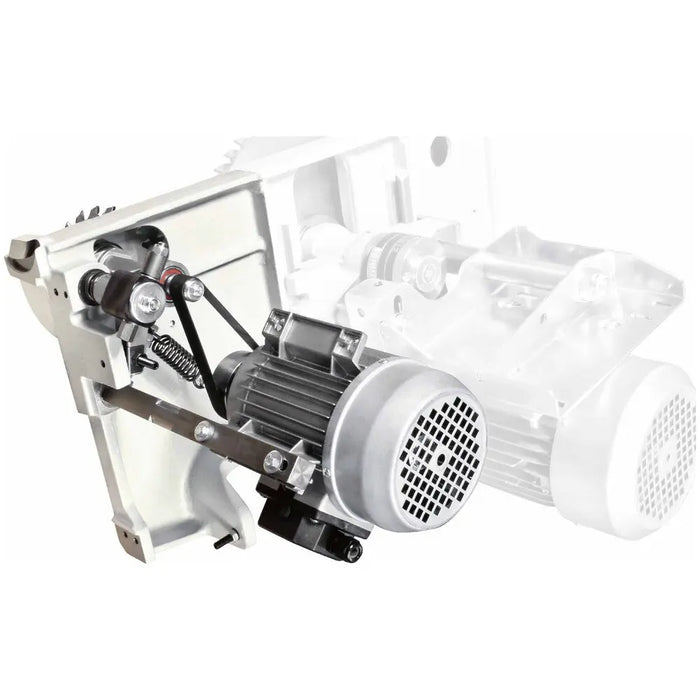

  • Independent Powered Scoring Unit: Adjustable scoring blade for improved panel-edge quality.

  • Telescopic Squaring Fence: Includes two flip-over stops and a graduated measuring scale.

  • Tilting Blade Assembly: Supports angled cuts up to 46°.

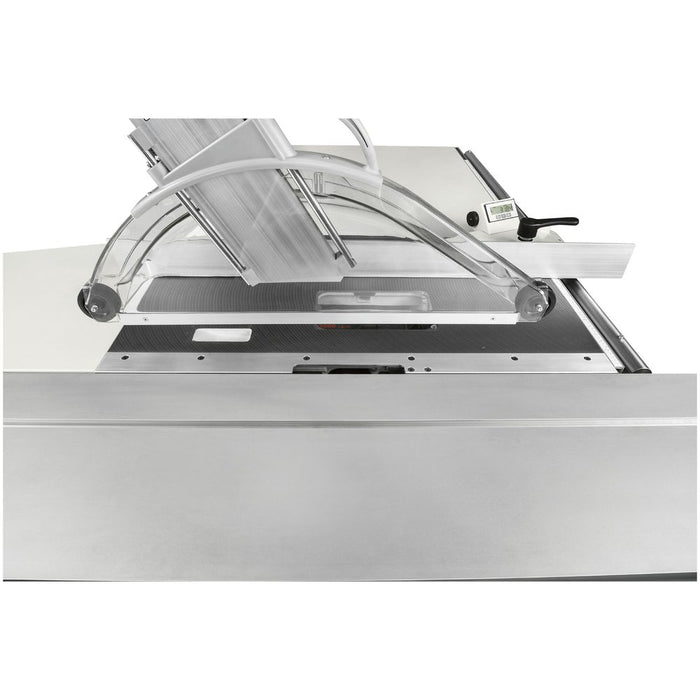

  • Integrated Dust Extraction Guard: Helps capture dust generated during cutting.

  • SCM Thundercut App: Offers cutting-list optimization, guided cutting instructions, inventory management, and compatible barcode-label printing.

  • Safety Protection: Emergency stop, overload protection, automatic main-blade brake, and lockable main power switch.

  • Included Accessories: Saw blades, scoring blade, trimming shoe, push stick, push handle, and tool kit, according to the listed configuration.

  • Accurate Cutting: A rigid saw-unit structure supports consistent cutting quality.

  • READY Electronic Control: Provides automatic rip-fence positioning with three positioning modes and storage for up to 99 programs.

  • Precision Sliding Carriage: Anodized aluminium carriage with hardened steel guides for smooth movement.

  • 10-Year Carriage Warranty: SCM specifies a 10-year warranty for the carriage sliding system.

  • Clean Panel Finishing: The powered scoring blade helps achieve clean edges on veneered and laminated panels.

  • Flexible Blade Adjustment: The main blade tilts from 90° to 46°.

  • Efficient Panel Handling: A squaring frame, telescopic arm, and roller assist with loading and positioning.

  • Digital Cutting Assistance: SCM Thundercut supports cutting-list optimization and guided cutting sequences on compatible tablets.

  • Built-In Safety Features: Includes an emergency stop, overload protection, an automatic main-blade brake, and a lockable main power switch.

Technical Specification Details
Brand SCM
Model Nova SI 4K R
Machine Type Sliding Table Panel Saw with Tilting Blade
Electrical Configuration Single Phase (1PH) / Three Phase (3PH)
Main Motor Power — 1PH 4 kW (5.5 HP)
Main Motor Power — 3PH 6 kW (8 HP) at 60 Hz
Scoring Motor Power 0.75 kW (1 HP)
Main Blade Speed 4000 rpm
Scoring Blade Speed 9200 rpm (60 Hz configuration)
Maximum Main Blade Diameter 400 mm
Included Main Blade Diameter 315 mm
Scoring Blade Diameter 120 mm
Main Blade Arbor Diameter 30 mm
Scoring Blade Arbor Diameter 20 mm
Blade Tilting Range 90° to 46°
Maximum Cutting Height at 90° 136 mm with 400 mm blade
Maximum Cutting Height at 45° 97 mm with 400 mm blade
Squaring Capacity 3200 × 3200 mm (listed configuration)
Cutting Width on Rip Fence 1270 mm (listed configuration)
Squaring Frame Dimensions 1200 × 650 mm
Worktable Dimensions 1000 × 560 mm
Sliding Carriage Material Anodized Aluminium Alloy
Carriage Guide System Hardened Steel Guides
Rip Fence Control READY Electronic Control with Automatic Positioning
Program Memory Up to 99 Programs
Dust Extraction — Base Outlet 120 mm
Dust Extraction — Overhead Guard 80 mm
Nominal Extraction Air Consumption 1200 m³/h
Compressed Air Requirement 6.5 bar, 10 Nl/min
Digital Cutting Support SCM Thundercut App
Manufacturer SCM Group, Italy
