SCM Nova SI 4S

SCM Nova SI 4S

by WSI Machinery
Sold out
$0.00
SKU

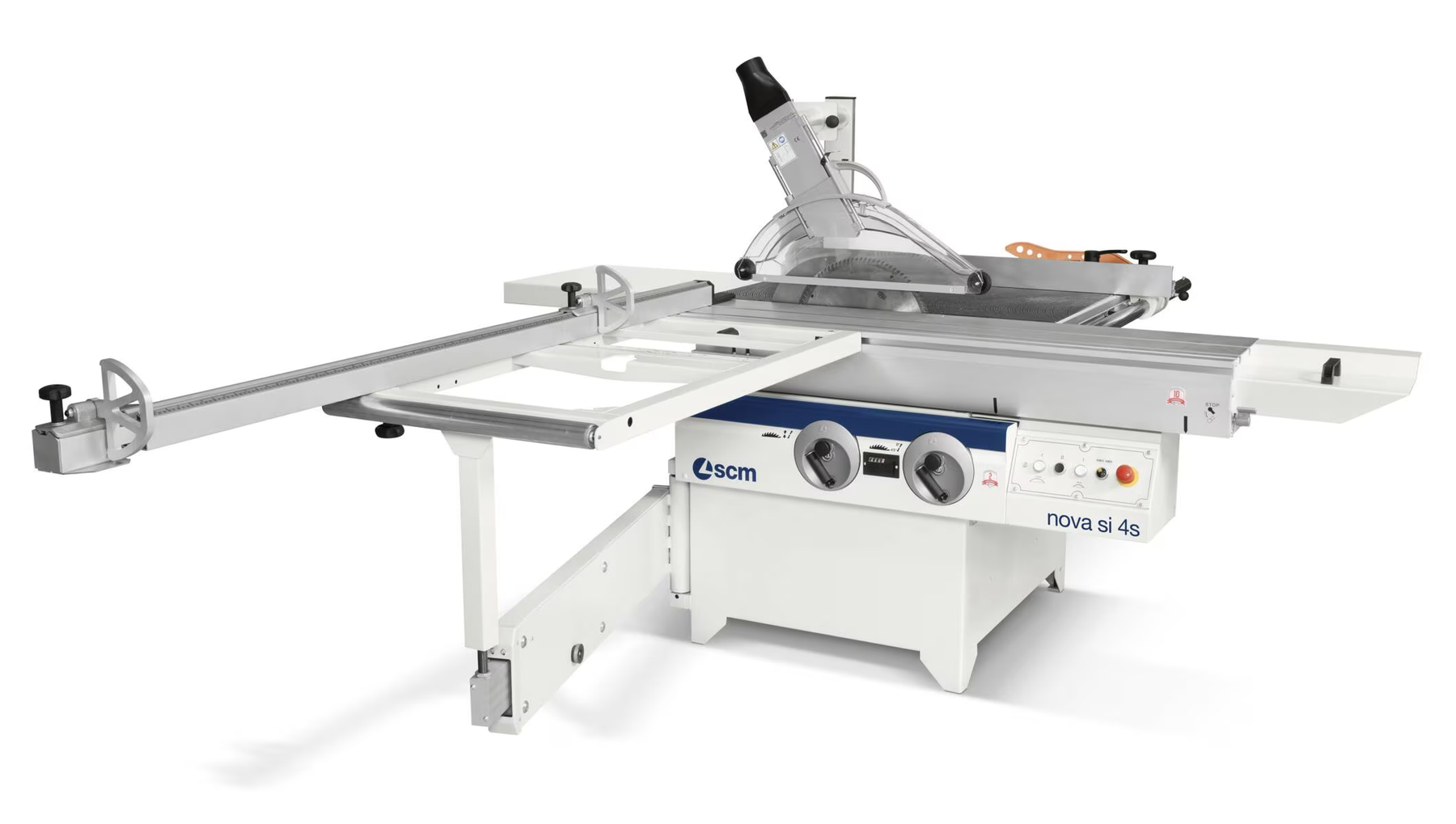

The SCM Nova SI 4S is a precision sliding table saw designed for professional woodworking shops, cabinet makers, furniture manufacturers, and joinery applications. It combines a robust saw unit, a smooth-sliding carriage, and accurate fence adjustments to deliver consistent cutting performance.

Designed for versatility and ease of operation, the Nova SI 4S supports precise straight cuts, angled cuts, and panel sizing. Its tilting blade allows adjustments from 90° to 46°, while the optional scoring unit helps achieve clean edges when cutting laminated or veneered panels.

The machine's sliding carriage, adjustable rip fence, and squaring frame help operators handle sheet materials accurately and efficiently. It is suitable for workshops looking for dependable cutting quality, practical setup adjustments, and reliable day-to-day performance.



High-Precision Cutting

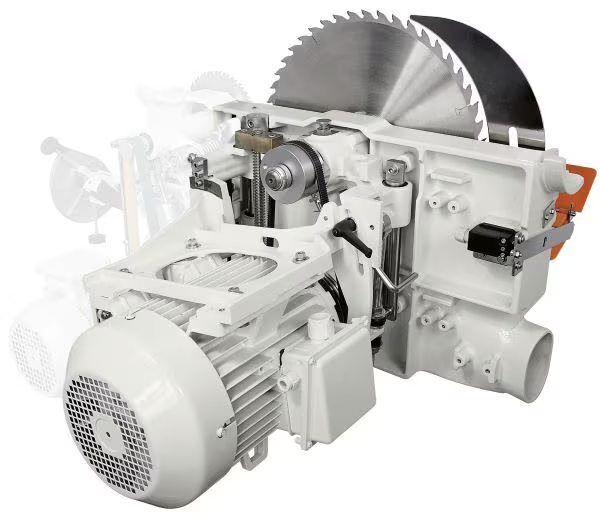

The rigid saw-unit construction supports accurate blade alignment and consistent cutting results across a range of woodworking applications.

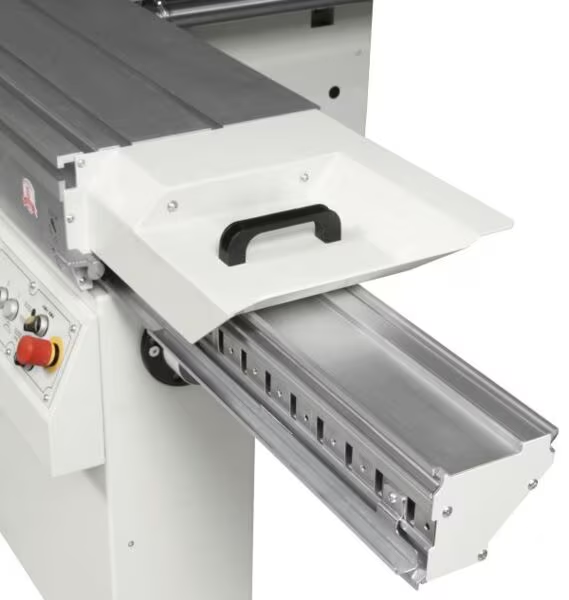

Smooth Sliding Carriage

The carriage runs on hardened steel guides and can be locked in different positions. SCM specifies a 10-year warranty for the carriage sliding system on the referenced configuration.

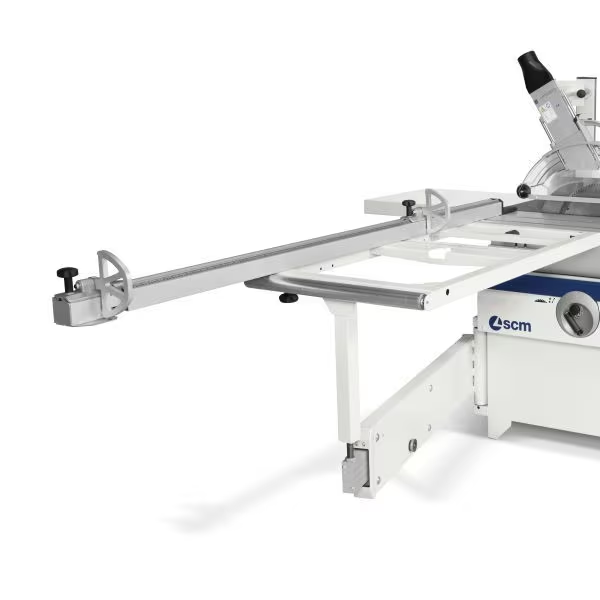

Accurate Panel Sizing

The squaring frame and adjustable rip fence help maintain precise dimensions when cutting panels and sheet materials.

Versatile Angled Cutting

The tilting saw blade supports cuts between 90° and 46°, providing flexibility for a variety of joinery and furniture-making tasks.

Clean Laminated Panel Edges

The optional scoring unit helps minimize chipping on the underside of laminated and veneered materials when correctly set up.


Digital Cutting Support

SCM Thundercut supports cutting-list management, optimization, and guided cutting sequences on compatible tablets.

Technical Specification Details
Brand SCM
Model Nova SI 4S
Machine Type Sliding Table Panel Saw
Maximum Main Blade Diameter 400 mm
Main Blade Diameter with Scoring Unit 315–400 mm
Maximum Cutting Height at 90° 140 mm
Maximum Cutting Height at 46° 99 mm
Squaring Capacity 1600 mm
Cutting Width on Rip Fence 1000–1500 mm
Blade Tilting Range 90°–46°
Motor Power From 5 kW
Sliding Carriage Material Anodized Aluminium Alloy
Carriage Guide System Hardened Steel Guides

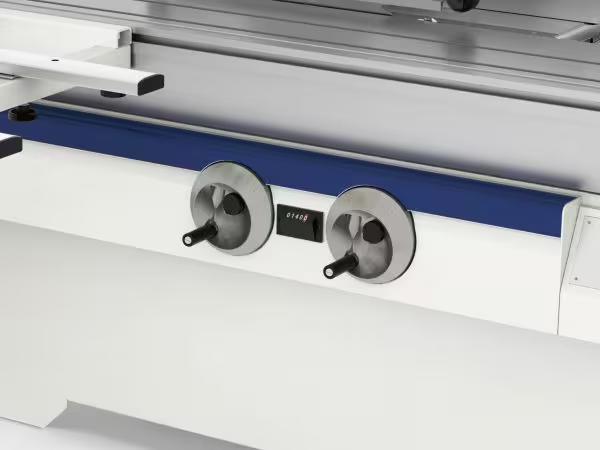

Rip Fence Manual with Micrometric Adjustment
Scoring Unit Optional
Dust Extraction Integrated Dust Extraction Guard
Applications Solid Wood, Laminated Boards, Veneered Panels
Digital Cutting Support SCM Thundercut App
Manufacturer SCM Group, Italy

Download Brochure
