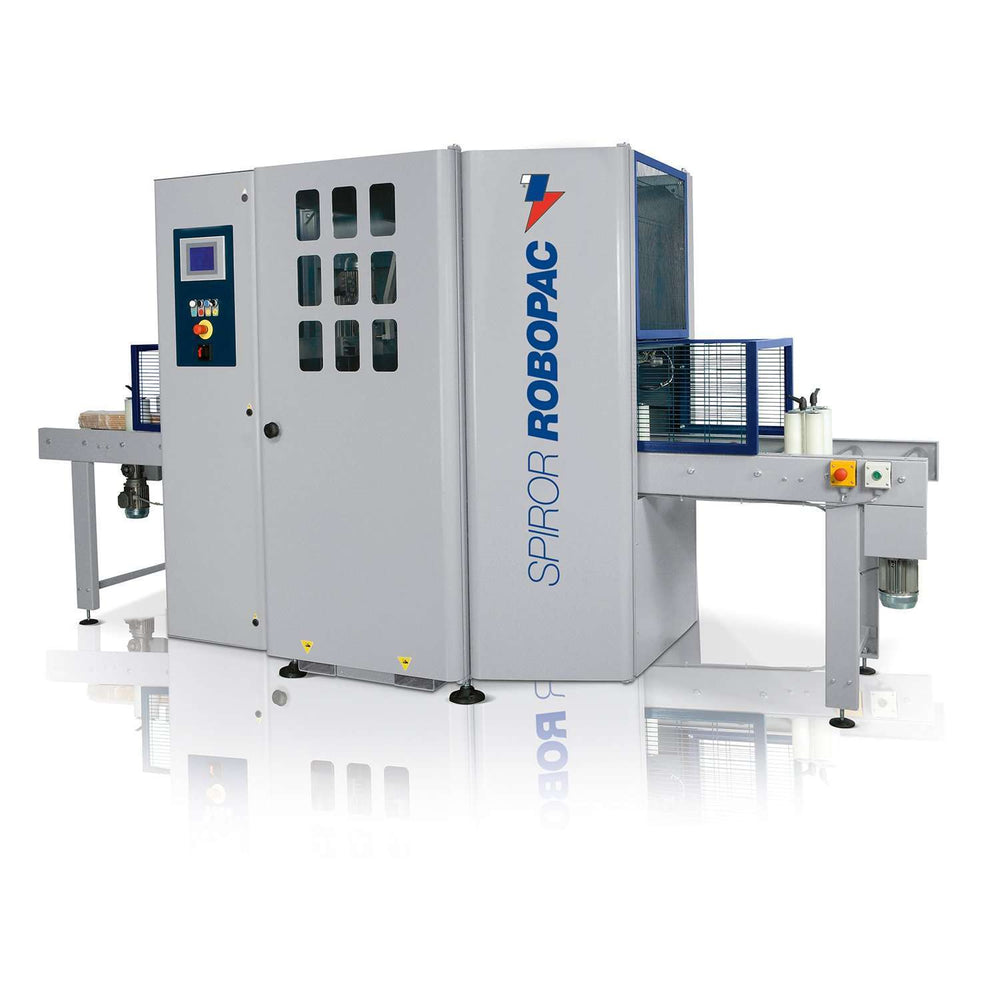

Spiror HP 300 Semi-Automatic Stretch Wrapper

by RoboPac
$0.00
SKU

The Spiror series of automatic high-speed horizontal wrapping machines are designed for low- to mid-volume production. The units are ideal for bundling long, narrow products like wood molding, aluminum and plastic extrusion as well as tubing, textiles and carpet.

The Spiror’s totally enclosed frame provides the highest level of safety. The machine doors cannot be opened unless the machine is powered off to prevent any possible risk.  Automatic film clamping and cutting is also standard for safe & simple operation.

This machine features constant film tensioning to improve package integrity and reduce film breaks. The rotating ring is built in single casting aluminum to guarantee great strength and reliability. Heavy duty built in single bear ring also provides a reliable support and consistent performance over time.

Spirors offer superior versatility in terms of applications and optional features, including various conveyor rollers to provide the best performance and enhanced durability.

Technical Data

Performance
Belt Driven Rotation YES
Max. Rotation Speed (RPM) 260
Load Capacity
Minimum Workable Dimensions 0.78” x .078”
Machine Structure
Variable Conveyor Speed (ft/min) 59.05 - 190.28
Film Delivery System
Pre-Stretch Friction Roll
Constant Film Tensioning YES
Pneumatic Cold Cutting & Clamping Unit YES
Film Width 5"
Core Diameter 3"
Operator Interface
Control Panel Icon Driven Color Touchscreen
Utility Requirements
Installed Power 3 HP
Power Supply Voltage 480 V 3Ph 60Hz
Working Pressure 90 PSI
Safety Features
Emergency-Stop Push Button YES
CE Compliant YES
Safety Guard Door & Switch YES



Features

Auto Film Clamp
Highly reliable, dual rod cutting system fully automates the wrapping process.
Auto Film-Cutting Device
Automatically cuts film at end of wrap cycle, saving operator an estimated 30 seconds per load.
Pneumatic Top Platens
Infeed and outfeed units automatically adjust to ensure proper stabilization of the product. The length of the run can be adjusted manually, if needed, to compensate for products of varying height.
R-Connect® Ready
Able to install R-Connect® remote monitoring software immediately.
Available Options

Extended Warranty
Manual or Automated Operation
Manual Top Pressure Unit Infeed & Outfeed
Automatic Top Pressure UnitInfeed and Outfeed


Advantages

Automatic Cycle Start
Built for Rugged Operations
Conveyor Infeed & Outfeed
Doesn't Cause Product Damage
Field Proven Technology
Ideal for Processing Aluminum & Plastic Extrusions
Ideal for Processing PVC Pipe
Ideal for Processing Textiles & Carpets
Ideal for Processing Wood Moldings
