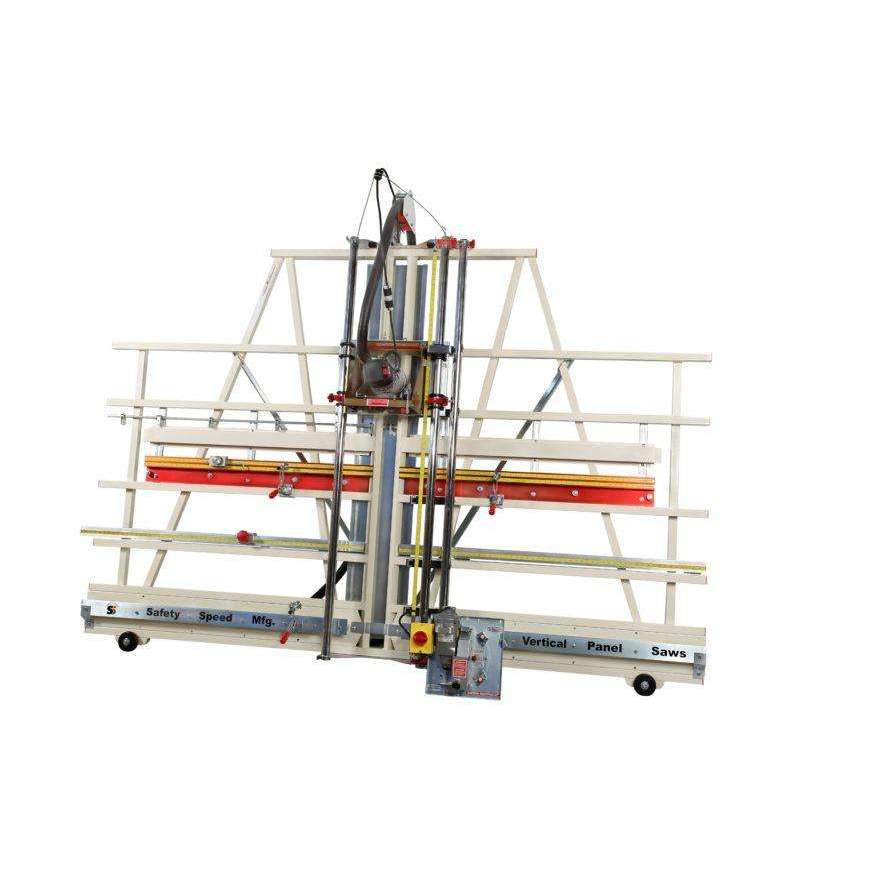

SR5U Panel Saw / Router

$6,486.00
SKU

This machine is perfect for cabinet shops, composite panel fabrication and other applications where both panel sizing and panel routing are required functions. Ask about our V-grooving package.

Standard Equipment

  • 3 Hp, worm driven saw motor.
  • 3 ¼ Hp, heavy-duty router motor.
  • 10 ft. welded steel frame.
  • Chrome-plated 1 ¾” guide tubes.
  • 8 Nylatron roller bearing system.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard 4 material clamps.
  • Integrated dust collection bonnets.
  • Solid aluminum material rollers.
  • Enclosed counterweight system.
  • Adjustable floating router head.
  • MID-WAY FENCE™ with stop.
  • MID-WAY FENCE™ flip stop.
  • 2 blind dado stops.
  • Extended warranty.
  • TUV certified to UL/CSA standards.

Technical Data

Max. Crosscut 62"/1575mm
Max. Rip Cut Unlimited
Max. Cut Thickness 1 3/4"/45mm
Cut Accuracy, Straight and Square 1/64"/.4mm
Saw Blade Diameter 8"/210mm
Motor 13 amp, 120V, 220V
Router Motor 15 amp, 120V, 220V
Frame Length 120"/3050mm
Product shipping information
Weight 589 lbs
Dimensions 124 × 17 × 92 in
