SCM Startech 27 Multi-Boring Machine, INCLUDES FREIGHT

by SCM
$12,695.00
SKU WSI-SCM27TP

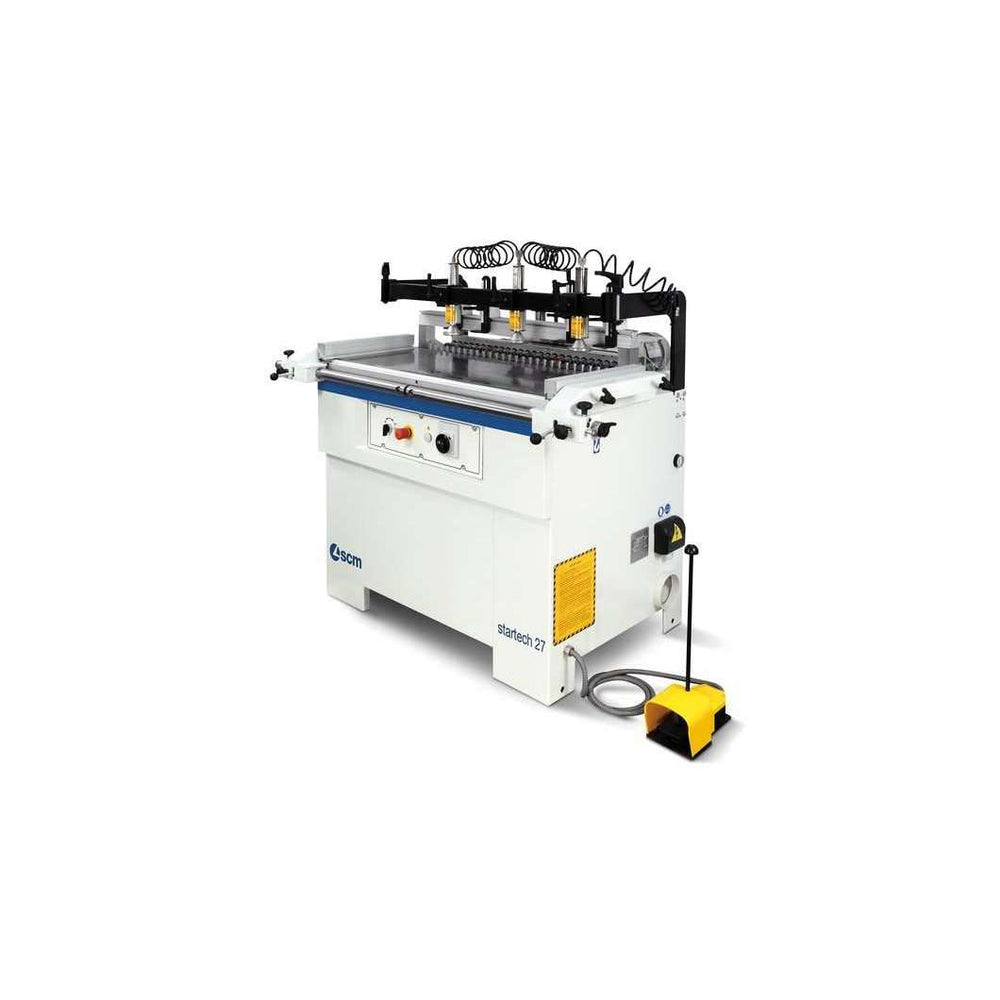

The Startech 27 is a heavy duty, single head multiboring machine that is capable of performing horizontal, vertical and 45° boring operations for wood and similar materials.

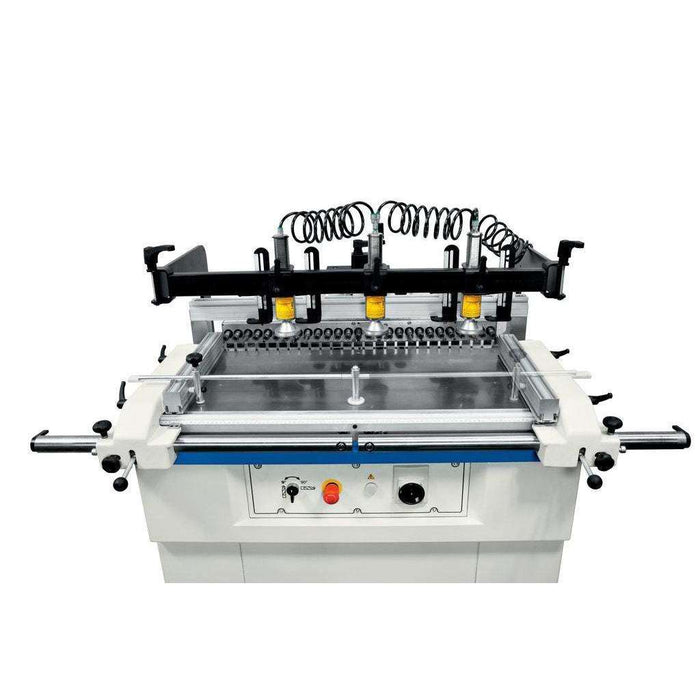

The base and worktable are made of both bended and welded steel plates to create a large workpiece support surface for large jobs. Right/left extensions with retractable stops L=3000mm are now standard! The extensions can be installed on the guides already mounted on the machine and are positioned at 90° with reference to the boring line; They are complete with 4 retractable stops (which may also be used as rear guides) and two upper pressure cylinders for the workpieces hold-down. The compass device allows the quick positioning of the guide located opposite the one in use without the necessity of metric reads.

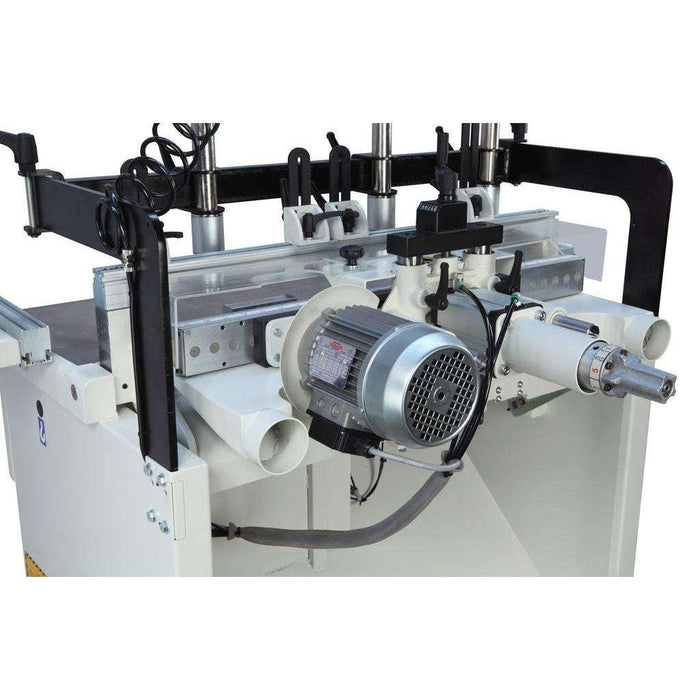

The standard operating unit features a boring head with quick attachment spindles (32 mm center-to-center) with an aluminum structure and gears. The boring head movement is created through a pneumatic piston. The boring unit can be automatically positioned horizontally or vertically. Boring head rotation can be adjusted from the control board. All spindles are preset for quick change adaptors.

The gantry uses an ultra-thick steel structure, with depth adjustment, to easily support the load bearing stress. Pneumatic cylinders for the workpieces lock when machining pieces. Automatic head movement for the horizontal and vertical boring unit positioning, with locking at 45° rear stops, lateral stops and extensions for long workpieces are engineered to ensure the best working precision on the piece.

Included accessories such as pneumatic head adjustment, spindles with quick attachment, and lateral guides L=3mm with reference stops for panel positioning.

Features

  • Line and construction boring with 45° positive stop
  • Two pneumatic clamps
  • Preset with a total of 18 quick change 10mm adaptors
  • Right left extension fence with retractable stops (3000mm)

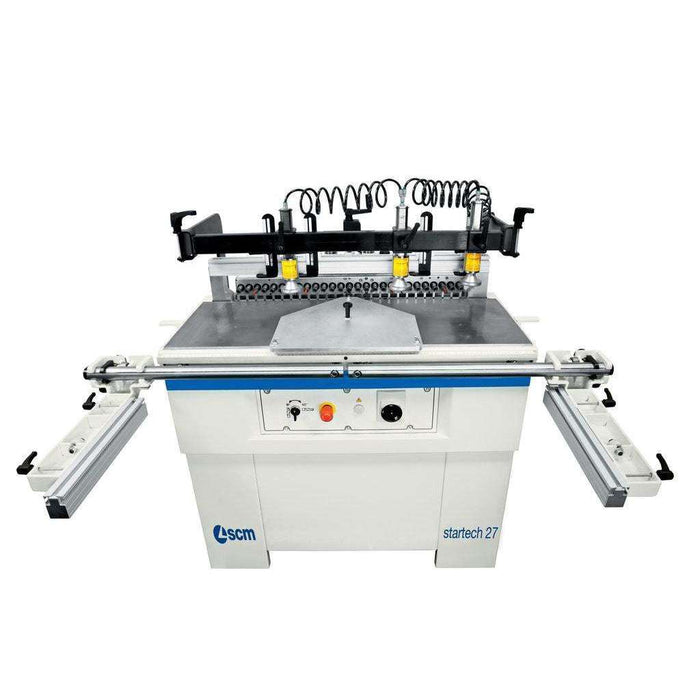

  • Fence for horizontal boring at 45°
  • One supplementary top pressure cylinder
  • Device for working narrow workpieces
  • Calibration jig

Recommended Tooling

Dowel Construction: 8mm x 57mm Brad Point Boring Bits or V Points for Through Holes

Line Boring: 5mm x 57mm Brad Point Boring Bits or V Points for Through Holes

Convenient selector, as standard, for the 0°- 45°- 90° automatic pneumatic head rotation

Rapid set up due to the 21/27 spindles with quick-release fittings.

Precise and practical with the nonius decimal scale and micrometric guides travel.

5 position revolving turret for always setting the correct depth.

Startech   27 21
Number of spindles n. 27 21
Centre distance between spindles mm 32 32
Spindles rotating speed rpm 3000 2800
Spindles motor power kW 1,5 1,8

TECHNICAL SPECIFICATIONS

HEAD GROUP
Number of spindles: 27
Left Hand Rotation Spindles: 14
Right Hand Rotation Spindles: 13
Center-to-center distance between spindles: 32mm
Total number of 10mm quick change adapters: 18
Spindles speed: 3000 rpm
Motor power of spindles: 2 HP (1.5kW)
Number of revolving turret positions: 6
Max stroke of boring unit: 63mm
Stroke of hydraulic brake: 50mm

TOOL
Maximum tool length: 80mm
Max tool diameter:40mm

PANEL
Max. horizontal boring height: 50mm
Max. width under the “gantry structure”: 1.025mm
Max. distance of vertical borings from panel edge:110mm / 320mm
Min. panel thickness:10mm
Max. panel thickness: 60mm

INSTALLATION
Compressed air pressure: 6 bar
Compressed air consumption: 3.6 Nl/cycle
Exhaust outlets diameter: 120mm+60mm+60mm
Exhaust air speed: 30mm
Exhaust air consumption:1220+300+300 m3/hr
Working table dimension: 1096mm x 407mm
Worktable height from floor:900mm / 35.5”
Weight: 815 lbs / 370 kg

**Specifications are subject to change**
