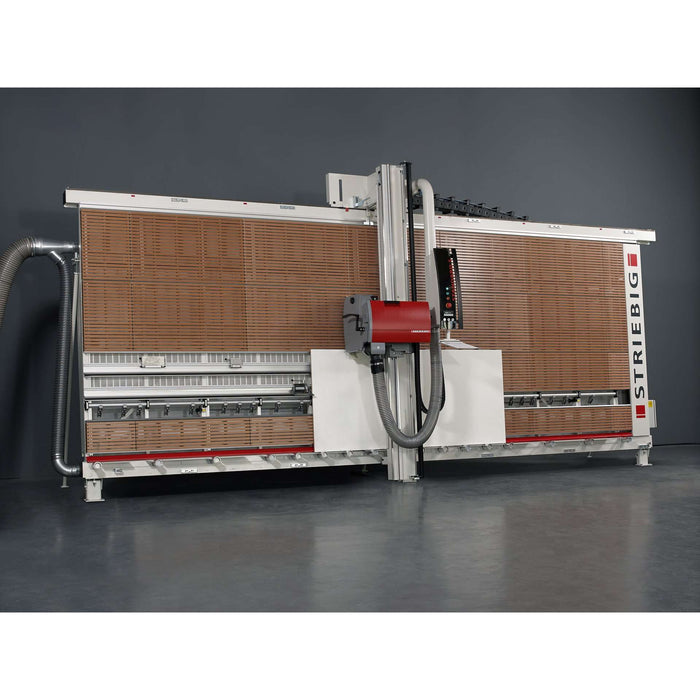

Striebig Standard S Vetical Panel Saw

$0.00
SKU

Tried and tested over decades

The Striebig STANDARD has been setting the standard in the universal class for vertical cuts for many years. It saws a wide variety of panel materials with precision, accuracy and perfect edges every time.

Absolute parallelism between the upper guide rail, the central support and roller support will ensure precise cutting over many years.

The STANDARD offers proven technology, a wide range of possible applications and Striebig's exemplary precision.

The new Standard S version comes standard with the VSA split-blade scoring saw unit. With the addition of the “Comfort” premium package to the S version, you get auto-locking support rollers, digital measuring for the Y-axis with motorized fine adjustment, pneumatic carriage clamping, and the laser cut line guide for horizontal cuts.

Advantages

• Swiss made quality for accuracy and durability!
• 14’1” x 5’6” cut capacity (5’1” max. horizontal rip height)
• Very stable, all welded steel frame suitable for free-standing or wall-mount installation
• Heavy-duty panel support rollers with integral foot pedal braking system
• Convenient, sturdy, two-section mid-shelf with adjustable aluminum finger allows for comfortable working of small parts and ability to stage material on one side of the saw
• Snap-in small parts supports included (one pair)
• Automatic, mechanically shifting support grid with replaceable lath tips
• Main measuring channel with inches/metric scales and measuring stop
• Second measuring channel for repeat dimensions with one auxiliary stop
• Vertical cutting stations 40 inches on center (1meter optional)
• High efficiency dust system has added rear collection area with full-length bottom dust collection pipe
• 7-1/2 hp, 220/440V, 3-phase motor with electric brake
• 300mm saw blade for 3-1/8” cut depth
• VSA scoring saw unit with carbide split-blade with shim spacers
• Template bar with six stops for setting typical horizontal cuts
• Repeat rip device with roller follower
• Saw head plunging device for cross-cutting tall panels on taller frame sizes

Accessories

• VSA scoring saw unit with infinitely adjustable split-blade

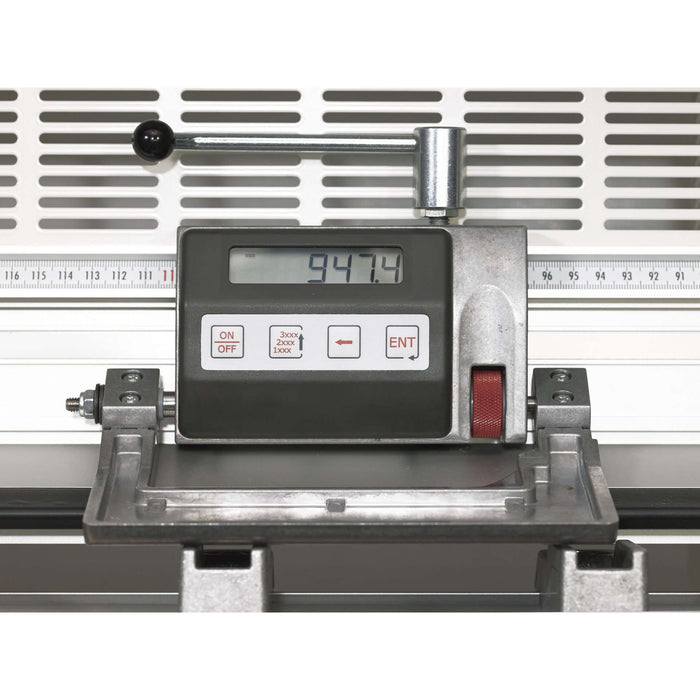

• DMS X-axis digital measuring (for vertical cuts) w/fine adjustment, 4-station reference
• *Wood small parts support area on right side 15" tall with sliding panel**
• *Full wood support grid (TRK1 like Evolution) including small parts support on right**
• *Pneumatic locking rollers in place of foot pedals (included in Comfort package below)

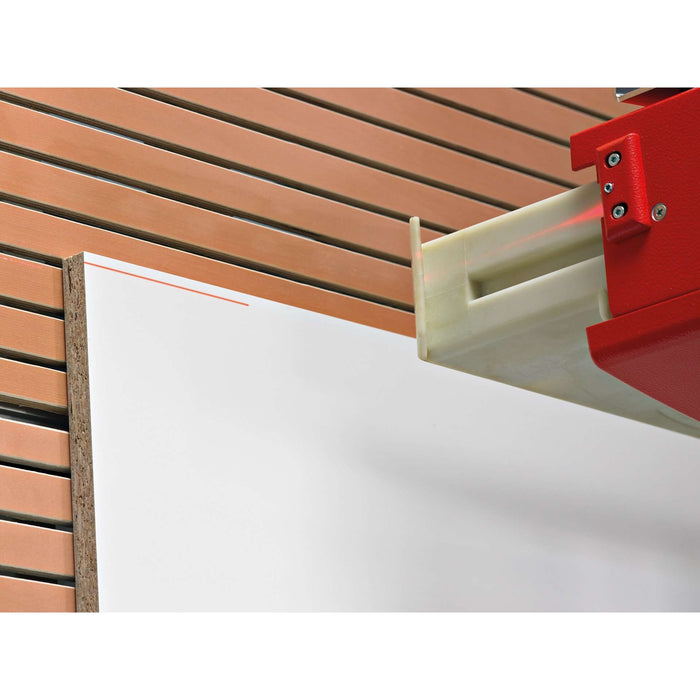

• *Laser line guide for setting horizontal cut (included in Comfort package below)
• *“Comfort Premium Package” including:

DMS-Y digital measuring in the Y-axis for horizontal cuts w/motorized fine adjustment

Automatic (pneumatic) locking rollers

Pneumatic carriage clamp to lock carriage at the push of a button

Laser line guide for setting horizontal cuts by eye

• WSG Angle Cutting Device with “unipoint” system and fine adjustment to 0.1 degree for angle cuts to 46 degrees. Wall-mount storage box included.
• *Dado grooving kit with special shroud and dial-adjustable depth control
• Adjustable dado cutter with carbide inserts, 8-15mm (5/16”- 9/16”)
• Taller 216 (or 224) frame for 7’1” (or 7’4”) vertical cut, (79.4” or 82.7” trim height)
• *Two-speed (half/full) motor (5.5 hp) with ProLock Easy-fix tool clamping system
• *Operating time Counter
• Document holder for convenient viewing of cut lists below control panel
• Center shelf fingers of fiber-reinforced plastic-easy sliding and gentle on fragile edges
• ProLock Easy-fix tool clamping system
• Spare scoring blade set with shims
• Spare scoring blade set- adjustable
• Scoring blade set- adjustable in PCD diamond for extra-long life

Technical Data

Cut capacities: 14'1" W (17'4" optional) x 5'6" H; depth 3-1/8" (80mm)
Weight (approx.): 1650 lbs. (net), 2200 lbs. (gross)
Main Saw Blade: 300 mm dia., 30 mm bore
Electrical: 3 phase, 220V or 440V
Dust collection: 1000 cfm, 140 mm connection; choice of side
Floor Space: 18' 0"L (21'3" opt.) x 5'1"D x 8'7"H (machine only)
