by Stromab
Sale
$153,000.00
$123,000.00
Payment Calculator
Financing Request
SKU WSI-STROMABCT600

STROMAB | FAST500 MATRIX HIGH-SPEED AUTOMATIC PUSH FEED STRAIGHT CROSSCUT SAW

A versatile crosscutting cut-off saw delivering exceptional performance at extremely high speeds.

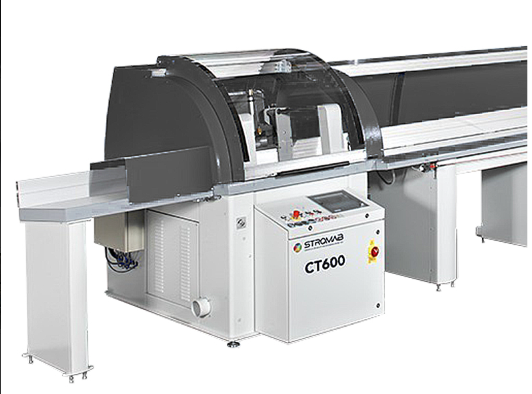

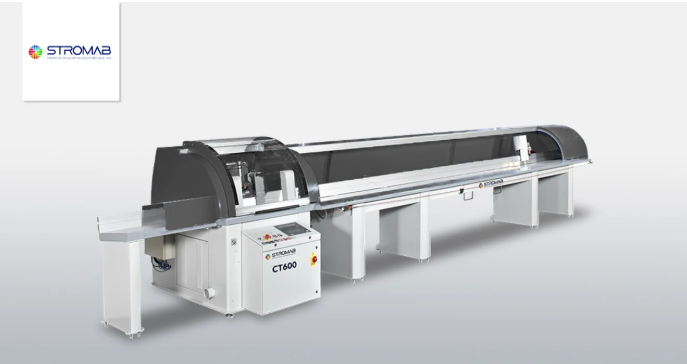

The Stromab CT600 MATRIX stands as a pinnacle of precision cut-off saws, featuring an innovative electronic push feed system with precise axis control with a rotating blade, which has a remarkable range of +/- 70°. This cutting-edge machine seamlessly marries the dependability of a pneumatic angle cut-off saw with an upward-moving blade, an advanced electronic push feed system, and an impeccably accurate rack and pinion guide system. The saw boasts an impressive array of six optimization options: Maximum length, Sequence, Board sequence, Volume, Minimum waste, and Priority. This ensures flexibility and adaptability for various cutting scenarios, maximizing productivity and material utilization. The motor system contains a brushless motor and a planetary reduction unit as well as a precision encoder for unparalleled accuracy. Since its debut, the CT600 MATRIX has surpassed all expectations by reaching unprecedented levels of performance, making it a continuous game-changer in the wood industry.

Why Stromab CT600 MATRIX?

  • Rotation blade capacity of +/- 70°
  • High speed cutting cycle for maximum throughput
  • Powerful 10HP main saw motor for effortless capacity cutting
  • Precision pusher driven by high speed rack & pinion system

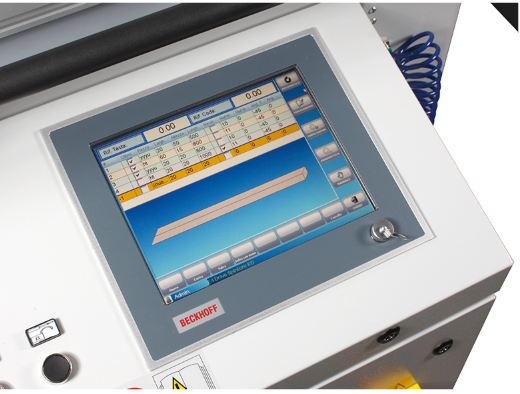

  • Equipped with a 12” BECKHOFF CP62XX touch-screen controller, with USB, Ethernet ports, and a WINDOWS operating software system
  • Ample storage capacity, accommodating up to 10,000 cutting lists with the ability to load and save machine parameters via USB
  • Pneumatic rising of the pusher at the end of the cutting cycle and overhead returning
  • Four loading capacity length options: 10’, 13’, 16’, and 20 foot
  • Various outfeed systems are available from flat tables to automatic sorting kickers

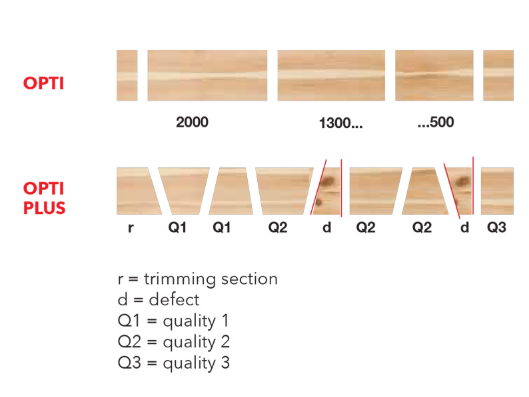

  • Two versions available, “OPTI” and “OPTI PLUS”, each offering integrated solutions to cater to diverse needs



CUTTING CAPACITY POSITION (A) – max. height


Metric
INCHES
0°
200 x 215 mm, 50 x 370 mm
7.9” x 8.5”, 2” x 14.6”
30°
200 x 185 mm, 50 x 325 mm
7.9” x 7.3”, 2” x 12.8”
45°
200 x 150 mm, 50 x 265 mm
7.9” x 5.9”, 2” x 10.4”
80°
200 x 35 mm, 50 x 63 mm
7.9” x 1.4”, 2” x 2.5”



CUTTING CAPACITY POSITION (B) – max. width


Metric
INCHES
0°
160 x 315 mm, 40 x 410 mm
6.3” x 12.4”, 1.6” x 16.1”
30°
160 x 270 mm, 40 x 350 mm
6.3” x 10.6”, 1.6” x 13.8”
45°
160 x 220 mm, 40 x 285 mm
6.3” x 8.7”, 1.6” x 11.2”
80°
160 x 52 mm, 40 x 70 mm
6.3” x 2.1”, 1.6” x 2.8”
CUTTING UNIT TECHNICAL FEATURES
Infeed Length
3000~14,000 mm (10 ft ~ 46 ft)
Outfeed Length
1000 mm (3 ft)
Min. Workpiece Thickness
10 mm (0.39”)
Min. Workpiece Thickness (with Auto Loader)
20 mm (0.79”)
Working Table Tilted
8°
Motor Power
10 HP (7.5 Kw – 400V)
TCT Blade Dia.
600 mm (23 1/2”) F= 30 Z= 60 S= 5
Blade Speed
2575 RPM
Cutting Cycle Speed
4 seconds
Automatic Rotation of the Table
-70°, 0°, +70° (-80°, 0°, +80°)
Rotation Positioning Speed from 0° to 70°
1.3 seconds
Rotating Positioning Precision
+/- 0.2°

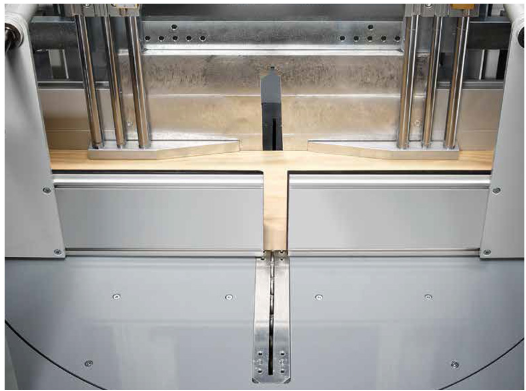

Vertical Hold-Down Cylinders
2 QTY.
Dust Extraction
4 x 100 mm (3.9”)
Motor Voltage
480/3/60 A=14.3
Horizontal Front Pressure Plates
2 QTY.
Push Feed System Technical Features
Positioning Precision
+/- 0.4°
Infeed Motor for Packet Weight
80 Kg (177 LBS)
Max. Push Feed System Speed
296 FPM

* 1: Vertical Twin Rod Slide Units
* 2: Horizontal Front Pressure Plates with Electronic Management
* 3: Gas Springs for Protection Lifting
* 4: Loading and saving machine parameters via USB port
* 5: N°1000 cutting lists are made up of 11 sizes or one list of 10,000 sizes in sequence, creating a graphic description of the workpiece

Additional Options

  • Program customized by STROMAB that can generate cutting list on PC
  • Large 18” outfeed monitor
  • Table rotation +/- 80°
  • Vertical cylinders for stack cuts at 90°
  • Pneumatic clamp
    • Pulling side clamp on right side
    • Pulling side clamp on left side
  • Extended push-feed system
    • Lengths from 6 ½ ft up to 46 ft longer (Price per meter)
  • Outfeed table extension
    • From 6 ½ ft up to 20 ft in length (Price per additional meter)

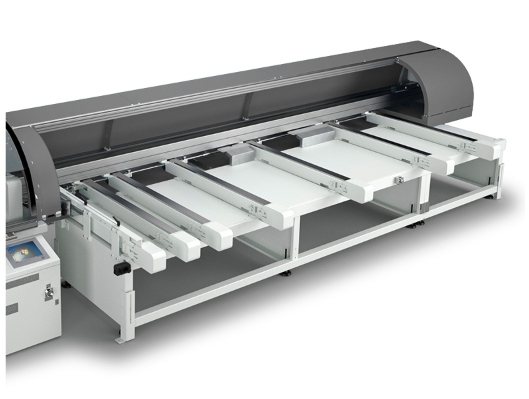

  • Automatic Loader built to machine specs
  • Electronic trap door for trim and waste ejection after the saw line (Straight cuts only)
  • Extra TCT Widia blade Ø 500mm (20”)
  • Label printers – 3 options:
    • Label printer (Basic) – direct heat
    • Label printer – heat transfer on normal paper
    • Label printer – heat transfer on polypropylene label
  • REA high-resolution ink-jet printer
    • 1 vertical printing head with a print height of 1/2”
    • 2 vertical printing heads with a print height of 1”

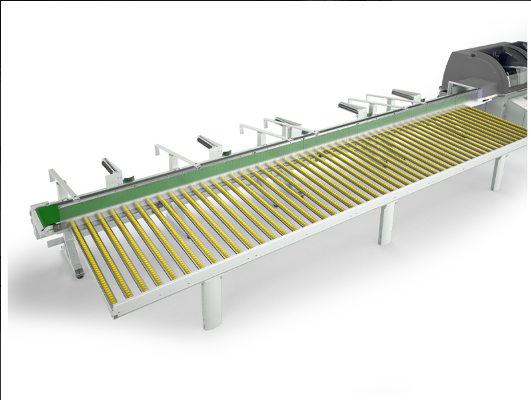

  • Electronic workpiece sorter with a belt and rapid kickers
  • Extended motorized belt of more than 10 ft (Price per additional meter)
  • Additional rapid kicker cylinder
  • Stacking idle roller table
