Superfici MiniDry Single Rack Dryer

Superfici MiniDry Single Rack Dryer

by WSI Machinery
Sold out
$0.00
SKU

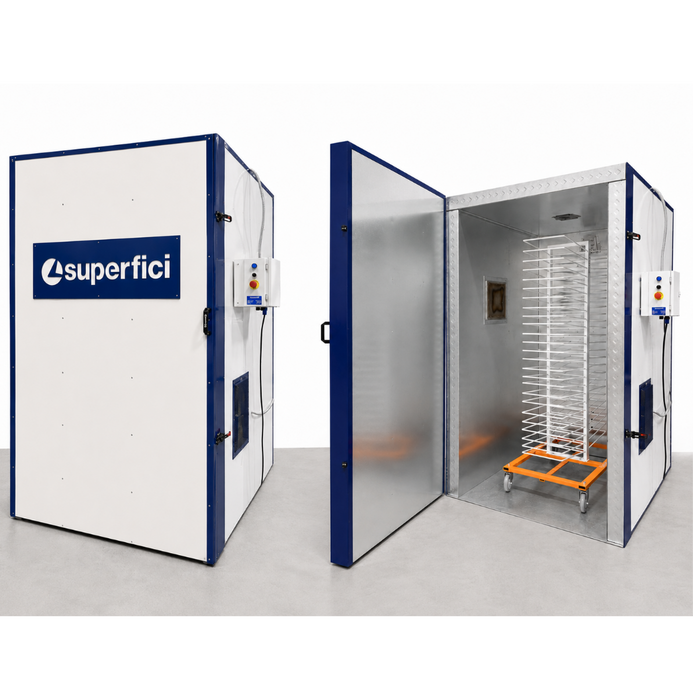

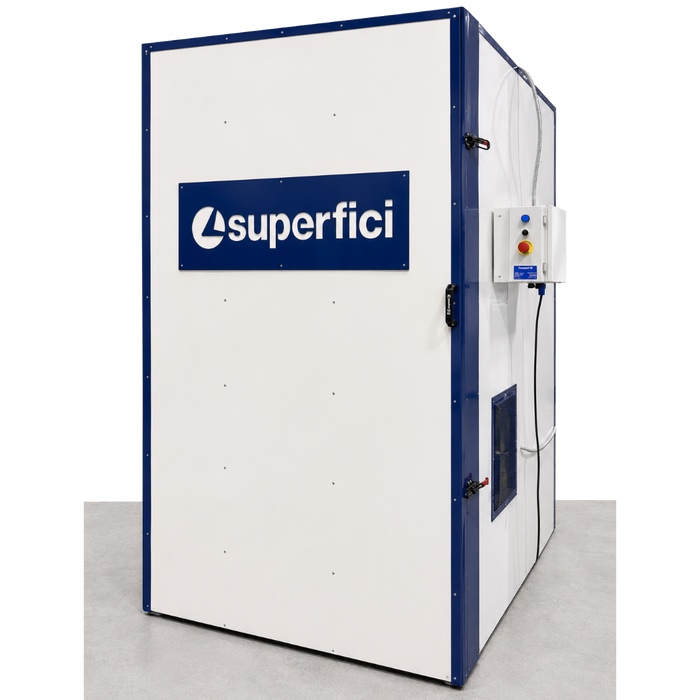

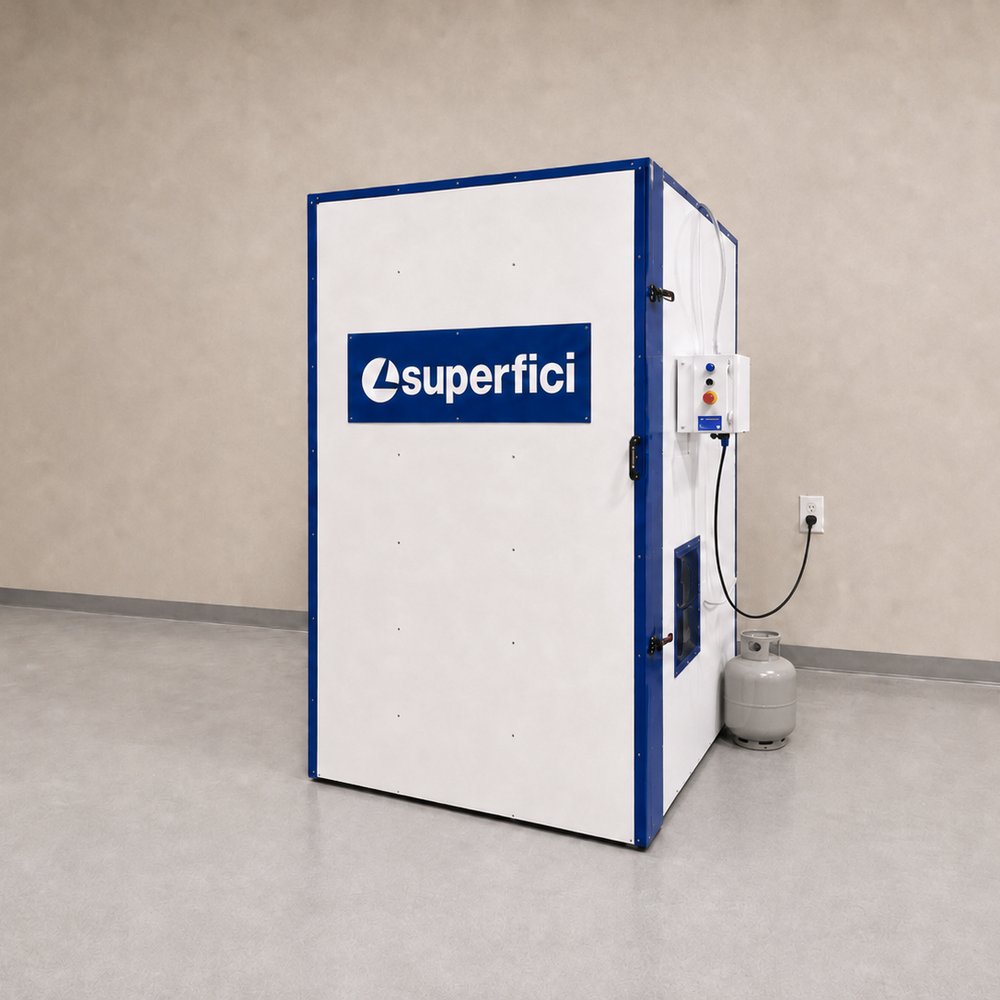

The MiniDry Single Rack Dryer is a catalytic infrared drying system designed to provide a fast and controlled curing environment for a single rack of coated parts. By combining catalytic infrared heat with controlled air circulation, MiniDry accelerates the curing process while delivering consistent and repeatable results. Ideal for manufacturers using manual spray booths or standalone spray machines, MiniDry helps small shops reduce drying bottlenecks, improve finish quality, and increase production throughput without the large investment or floor space required for a complete finishing line.

  • Standard 120V Power: Powered by a standard 120V outlet, allowing for faster installation without requiring facility modifications.
  • Controlled Drying Environment: Combines IR heat and air circulation to reduce cure times and improve workflow efficiency.
  • Versatile Finishing: Ideal for use with a variety of finishes and lacquers.
  • Extended Operation: Standard 20 lb propane tank connection provides 60+ hours of continuous operation at full power.
  • Wireless Tablet Controls: Intuitive wireless tablet controls with programmable recipes for simple and consistent operation.
  • Optimal IR Exposure: Single-rack design keeps parts within the optimal IR irradiation angle for efficient curing.
  • Cook Timer Alarm: Audible “cook timer” alarm alerts operators when the batch is complete.
  • Ideal for Manual Operations: Perfect companion for standalone spray machines and manual finishing operations.
Specification Details
External Height 90"
External Width 56"
External Depth 70"
Door Clearance Length 139"
Operating Controls Wireless Tablet
Heat Controls 0–100%
Time Controls 1 second – 99 hours
Programmable Up to 20 recipes
Electric Power 120V – 4.5 Amps
Air Exhaust 200 CFM
Air Recirculation 200 CFM
Fuel Type Propane
Gas Usage 12,000 BTUs
Run Time 60+ hours at full power

Download Brochure
