TW 45C

by SCM
$4,995.00
SKU

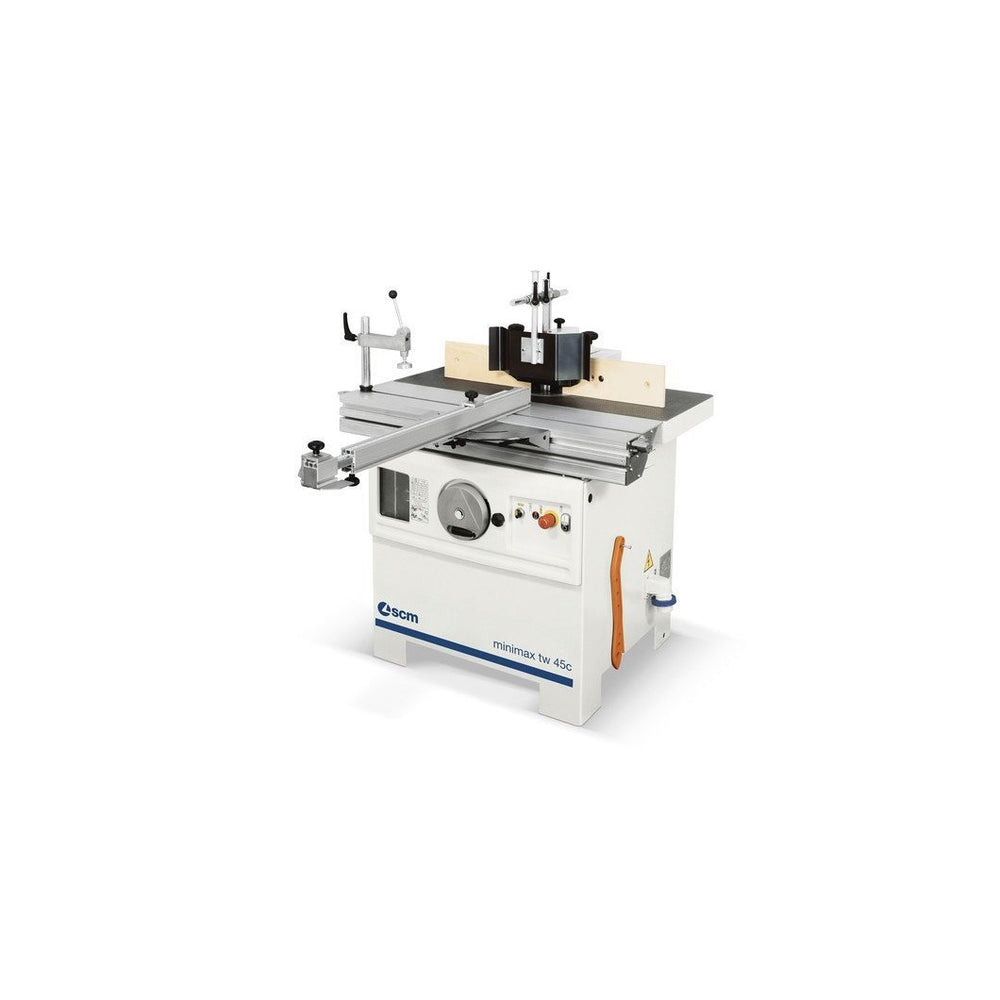

The spindle moulder, with sliding table and fixed or tilting spindle, versatile and easy to use, ideal for D.I.Y. woodworkers and craftsmen.

Advantages

Professional and very sturdy

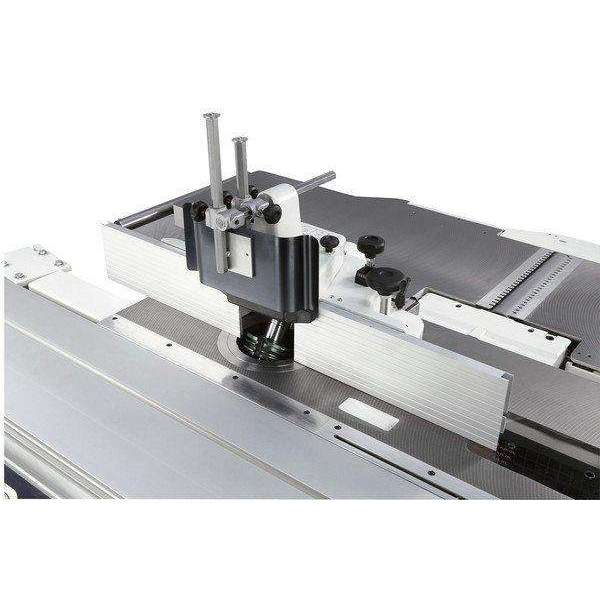

The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.

Tilting spindle

On request, it is available the 45° tilting spindle, toward the inside of the machine.

Customisable for any requirement

The 270 mm sliding table on tw 45c, provides a greater support, very useful also for tenoning. Precise cuttings, even for large work pieces, with the support frame (option) with telescopic fence.

High-tech accessories

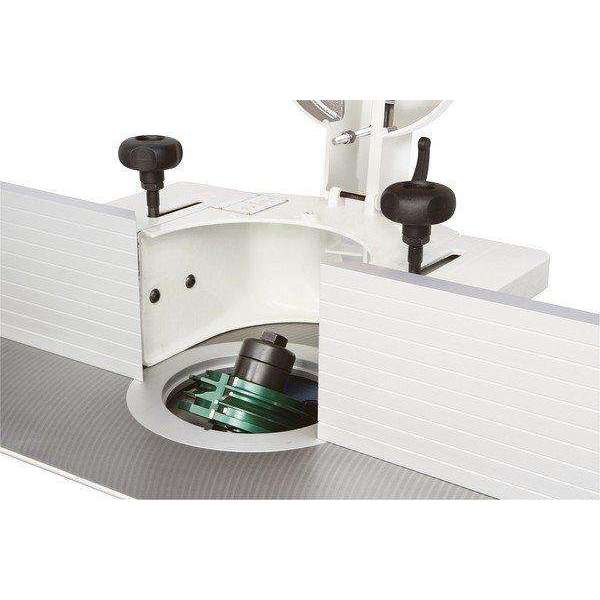

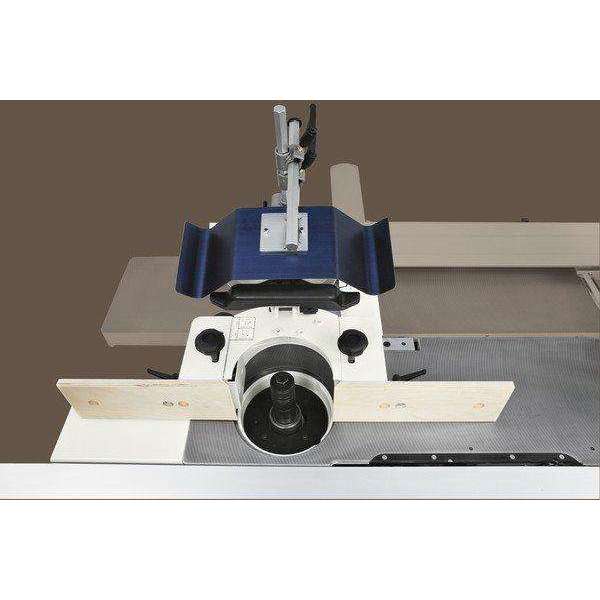

As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.

Technical Data

tw 45c
Max. useful spindle length mm 100
Spindle moulder speed (a 50 Hz) giri/min 3500/7000/10.000
Max. tool diameter when profiling mm 210
Max. tool diameter lowered under the table at 90° mm 180
Max. tool diameter when tenoning mm 275
Three-phase motors starting from kW/Hz 5 (6) / 50 (60)
