Used 2003 Homag Optimat CNC Router 5x12
Click or scroll to zoom
Tap or pinch to zoom
Used 2003 Homag Optimat CNC Router 5x12
Used 2003 Homag Optimat CNC Router 5x12

Used 2003 Homag Optimat CNC Router 5x12

by homag
$15,000.00
Payment Calculator
Financing Request
SKU

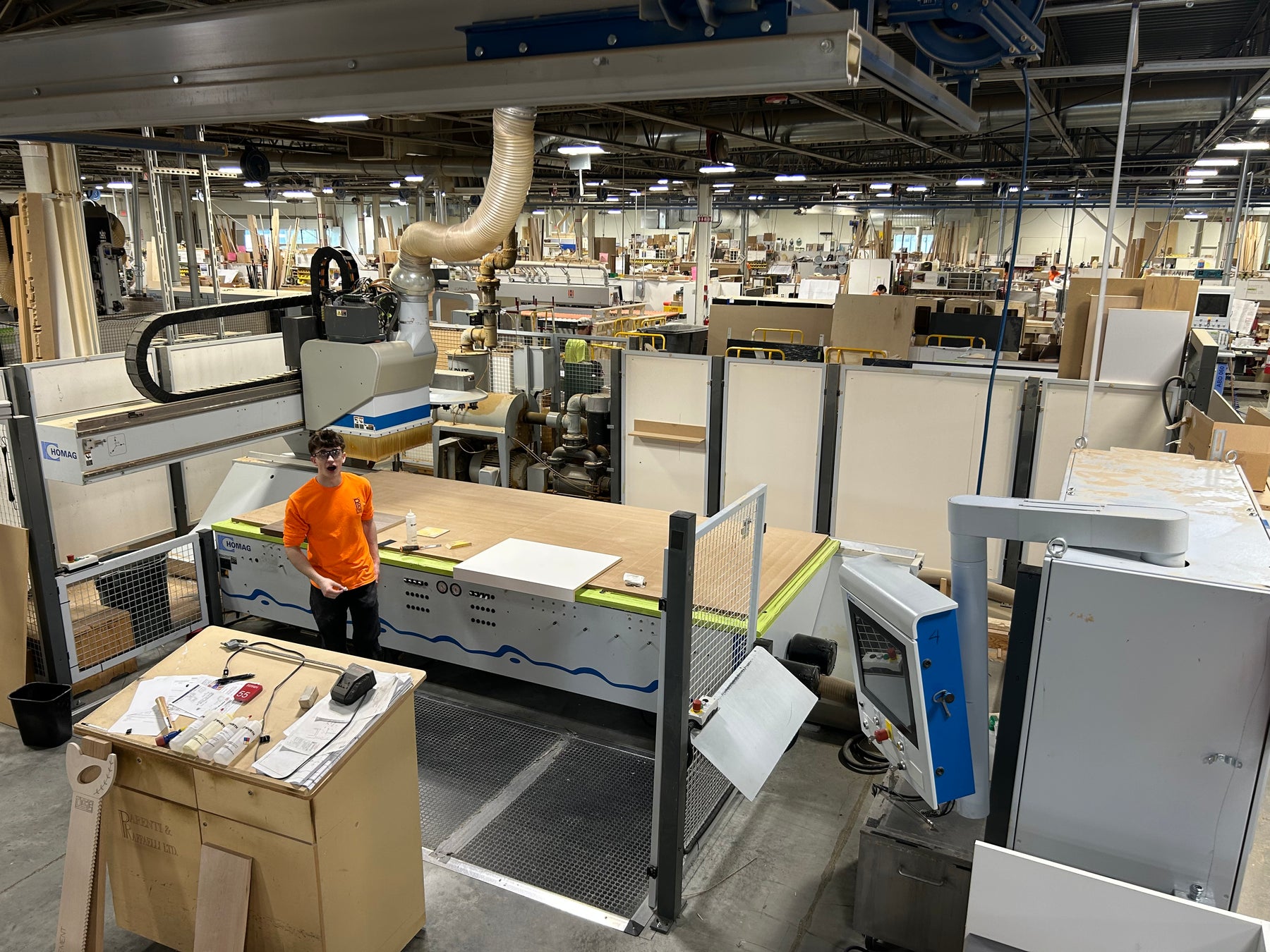

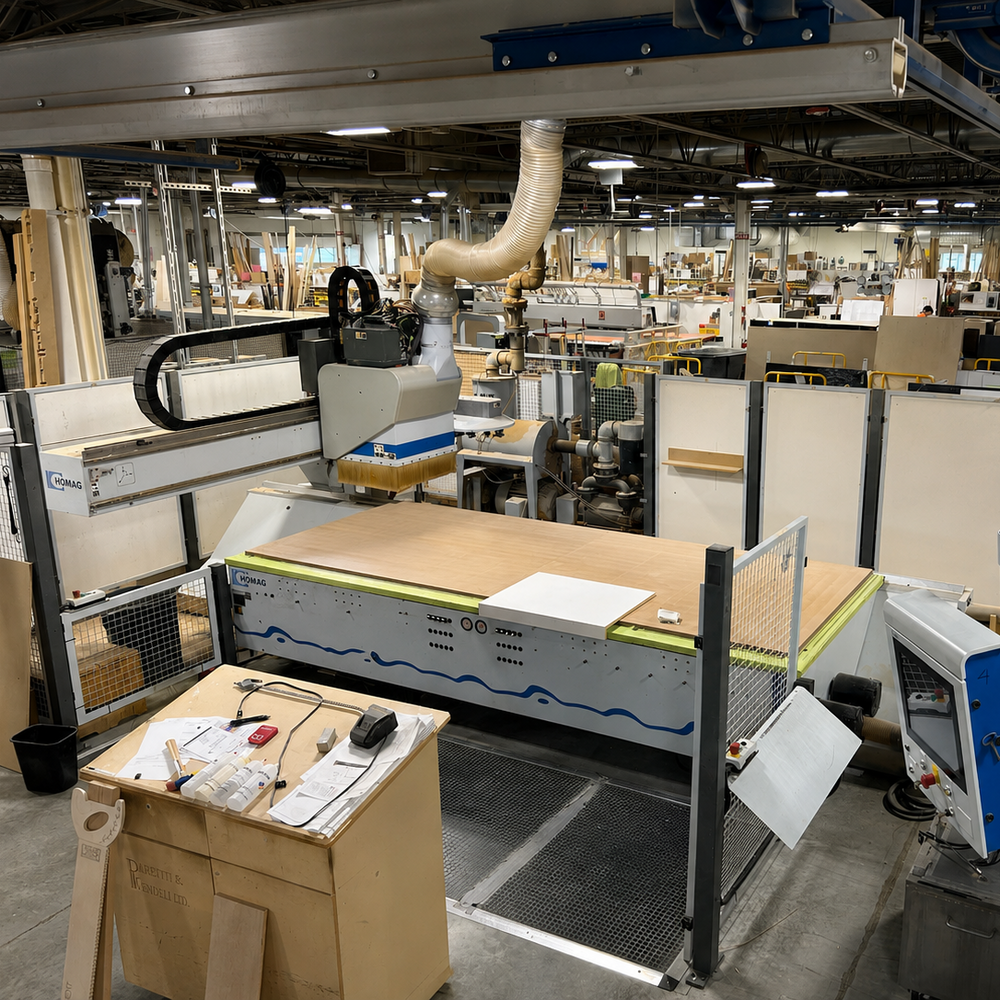

The BOF 311 Optimat series was designed by the HOMAG Group as a high-capacity, heavy-duty entrance machine for automated industrial manufacturing. The structure features a highly stable gantry design engineered to withstand aggressive routing stresses while maintaining precision. It handles workpieces up to 300 mm thick and features a flat MATRIX high-vacuum grid table optimized for nested sheet fabrication. Driven by a high-torque spindle and integrated digital control loops, the machine operates as a centralized hub for everything from complex furniture parts to heavy door routing

FOB: Wauconda, IL

  • Optimized Nesting Integration: The localized MATRIX table allows a user to lay down thin MDF spoilboards for seamless, full-bleed nested sheet drilling and routing.
  • High-Speed Axis Traversal: Rapid vector acceleration speeds of up to 113 m/min reduce cycle times drastically during large-format processing.
  • Exceptional Rigid Stability: The massive 20,000 lbs frame absorbs heavy spindle vibration to maintain sub-millimeter edge routing finishes across continuous shifts.

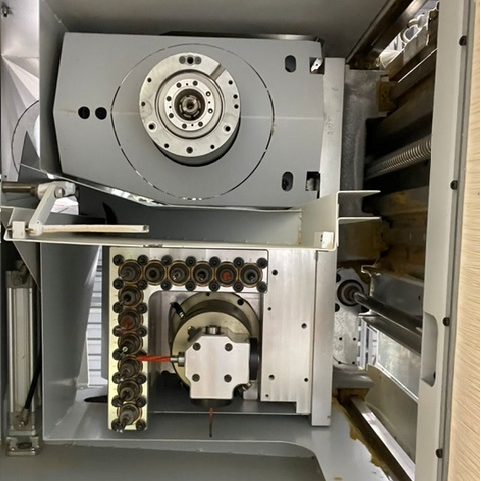

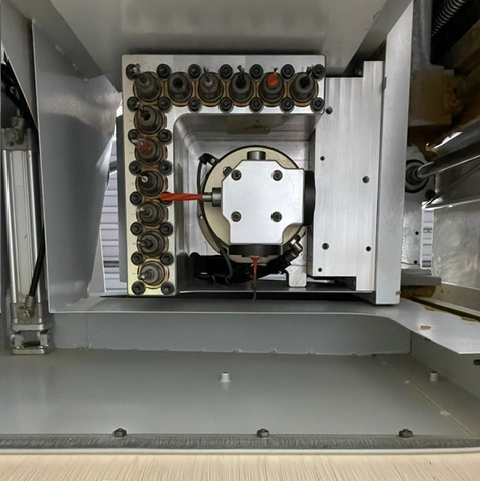

  • Flexible Multi-Axis Expansion: Equipped with a continuous 4th axis (C-Axis) to automatically rotate horizontal boring aggregates and saw aggregates at any angle.
  • Alternating Field Operation: Generous bed dimensions allow for safe alternating pendulum processing, meaning an operator can safely unload parts on one side while the machine runs on the other.

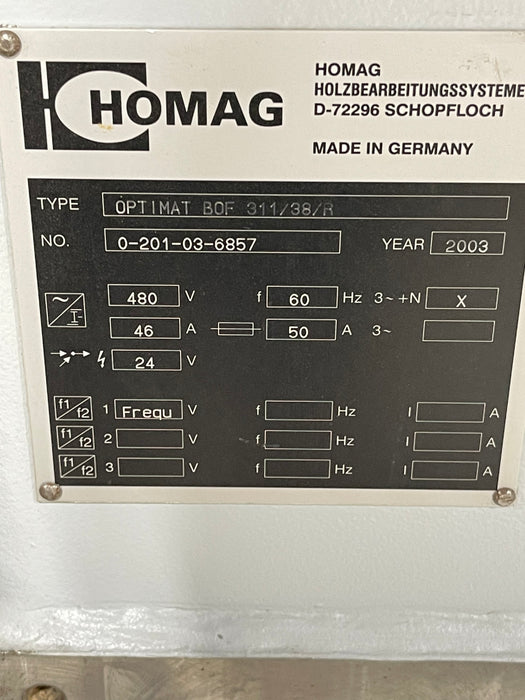

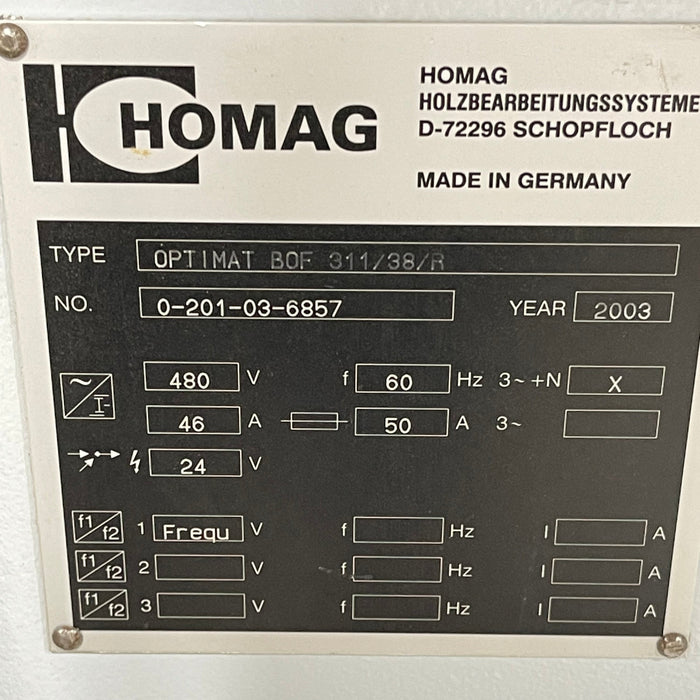

  • Brand / Manufacturer: HOMAG Group
  • Machine Type: Optimat BOF 311/38/R
  • Serial / Machine Number: 0-201-03-6857
  • Year of Manufacture: 2003
  • Voltage Input: 480 V
  • Frequency: 60 Hz (Three-phase + Neutral)
  • Amperage: 46 A
  • Control Voltage: 24 V
  • Software Environment: This machine is natively compatible with the HOMAG woodWOP programming suite, allowing the operator to design graphical macro blocks directly on the floor console or import external DXF CAD geometry.
  • Extraction Requirements: Requires an extensive industrial baghouse dust collection network with a dedicated high-volume blower to handle the large volumes of chips thrown off by the main routing head.
  • Safety Integration: To comply with safety standards, this machine uses integrated multi-zone pressure safety floor mats and automated interlocked fencing boundaries to emergency-stop the machine if an operator steps into the active travel envelope.
