Used 2007 37" Single Head Butfering Optimat SGO 109K Wide Belt Sander

Used 2007 37" Single Head Butfering Optimat SGO 109K Wide Belt Sander

by Butfering
$8,500.00
SKU

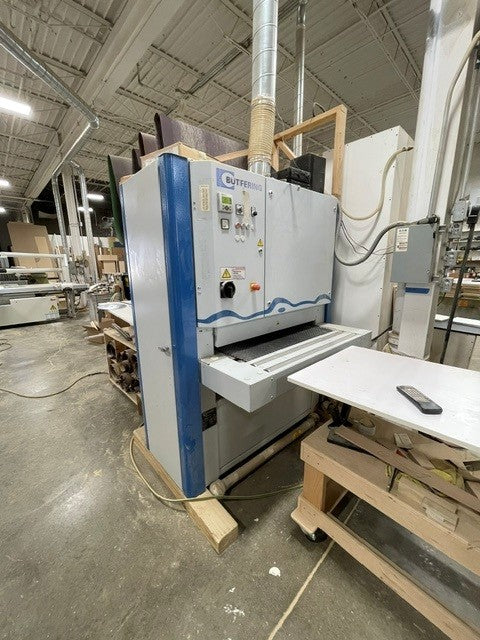

The Butfering Optimat SGO 109 K is a German-engineered single head wide belt sander designed for surface processing in commercial woodworking environments. Built in 2007, this machine handles tasks ranging from calibrating solid wood components to fine sanding and processing various wood-based panel substrates. It features a heavy-duty frame layout enclosing a single internal belt assembly accessible via hinged side doors, complete with an external front operator terminal for line monitoring.

FOB: Wauconda, IL

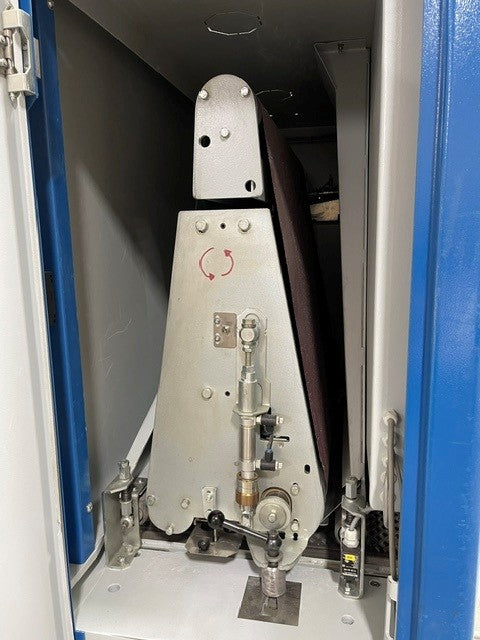

  • Single combination sanding head assembly featuring a main drive belt system with rotation direction indication indicators inside the enclosure.

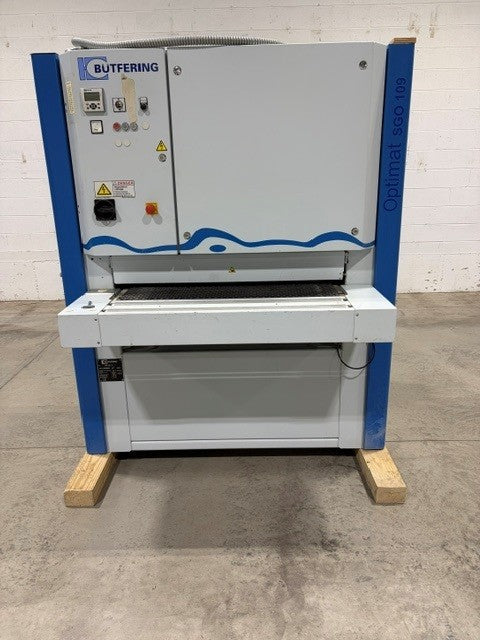

  • Front control panel integrated into the upper housing door featuring an electronic display unit, digital indicator meters, push buttons, and selector toggles.
  • Integrated main power emergency stop button and structural safety switch components.
  • Motorized part thickness adjustment functionality with external control inputs.

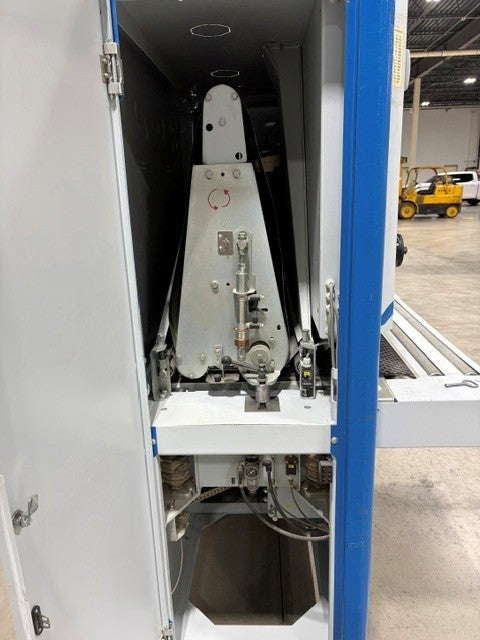

  • Enclosed internal design layout utilizing dual side access service doors with mechanical hinges and latch fasteners.
  • Pneumatic line integration with dual analog pressure gauges mounted inside the mechanical service chamber.

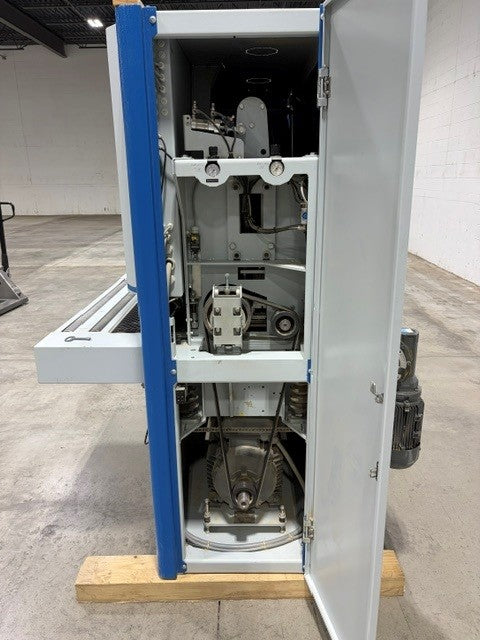

  • Bottom mounted main drive motor assembly connected via heavy duty drive belts to the upper sander spindle mechanisms.
  • Heavy duty base construction resting on solid leveling support skids for plant floor layout optimization.
  • Top extraction port designed for overhead dust control integration.

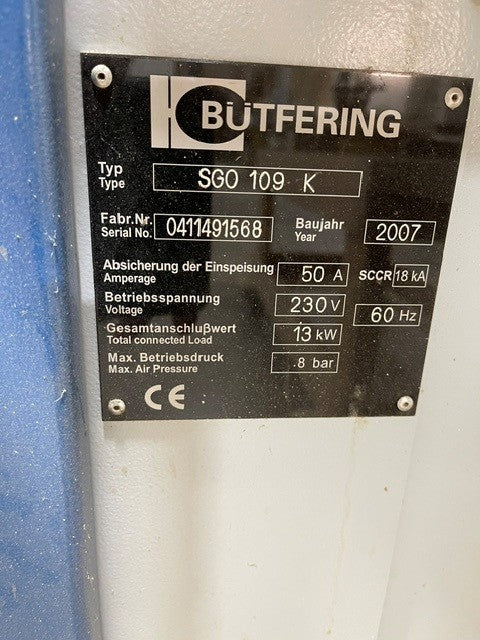

Attribute Specification
Type SGO 109 K
Serial Number 0411491568
Year of Manufacture 2007
Amperage 50 A
Voltage 230 V
Frequency 60 Hz
SCCR 18 kA
Total Connected Load 13 kW
Maximum Air Pressure .8 bar
Certification Markings CE
