Used 2018 Morbidelli M600 5-Axis 5x12 Flat Table CNC Router with Flexstore Storage Retrieval

• True "Batch One" Automation: Seamlessly manage mixed panel sizes, thicknesses, materials, and colors from a single interface. The SCM Flexstore EL automatically selects and feeds the precise raw sheet required for the active job ticket.

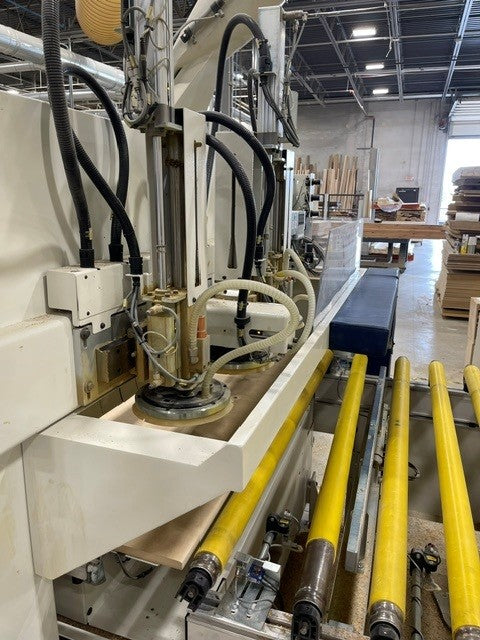

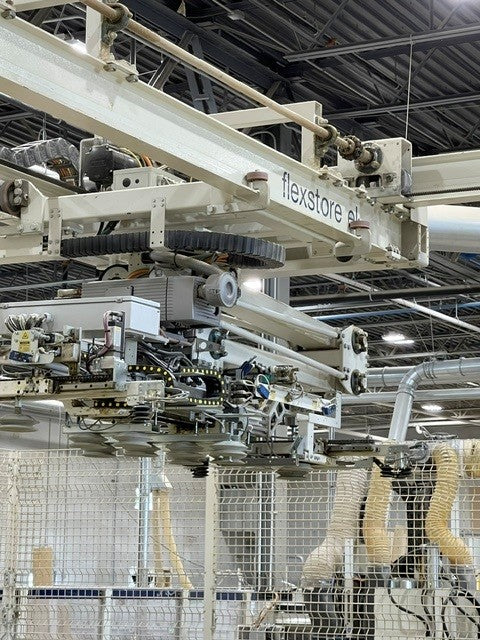

• Exceptional Material Care: The overhead gantry system utilizes an intelligent vacuum suction-cup matrix. This provides a "no-sliding" motion that guarantees zero surface scratches or cosmetic damage to high-gloss or sensitive veneers.

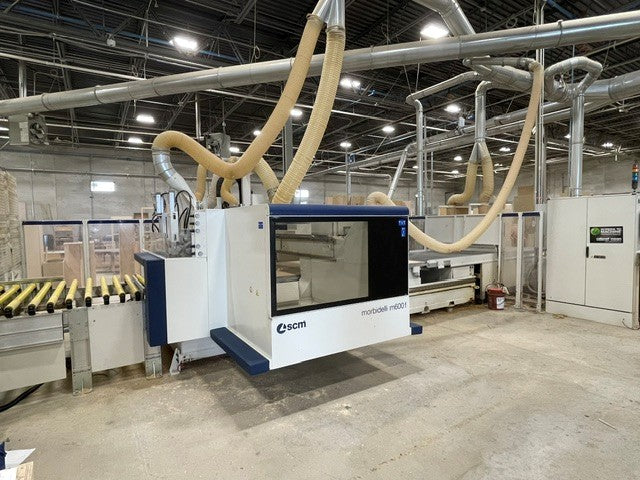

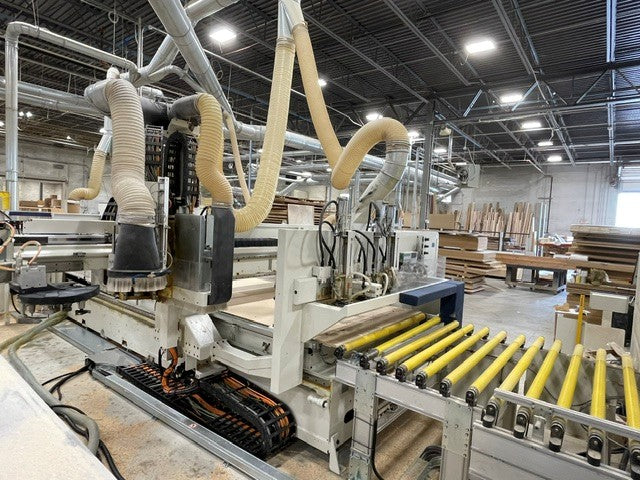

• High-Speed, Vibration-Free Machining: The M600F heavy electro-welded mobile gantry structure delivers flawless edge finishes and zero-play routing, running complex tool paths smoothly at high speeds.

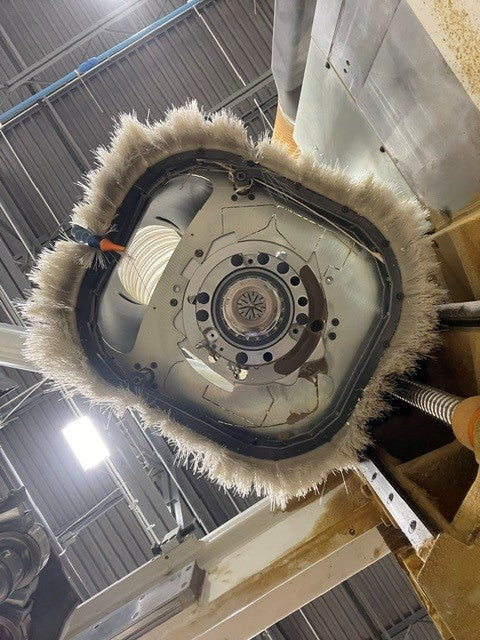

• Massive Maintenance Savings: Features proprietary RO.AX (Rotoaxial) spindle technology, providing a highly rigid drilling head that requires up to five times less maintenance than industry-standard spindles.
• Contactless, Ultra-Reliable Vacuum Hold-Down: Equipped with dual premium Busch Mink Dry Claw Vacuum Pumps. The oil-free, non-contact internal claw design avoids the constant wear and high maintenance costs of standard rotary vane pumps.

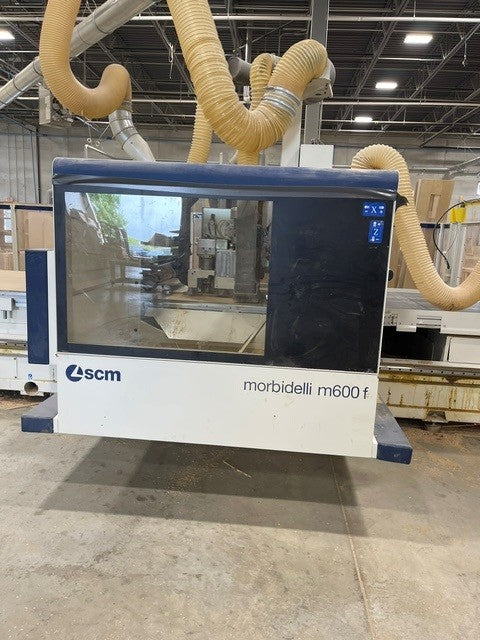

 1. Morbidelli M600F (SCM Group S.p.A.)

• Model: M600F Cell
• Designation: Fora-Fresatrice CNC (CNC Drilling and Milling Machining Center)
• Year of Manufacture: 2018
• Machine Weight: 9,650 kg (Approx. 21,275 lbs)
• Electrical Connection: 400V | 3-Phase | 50/60 Hz
• Full Load Current: 88.6 A

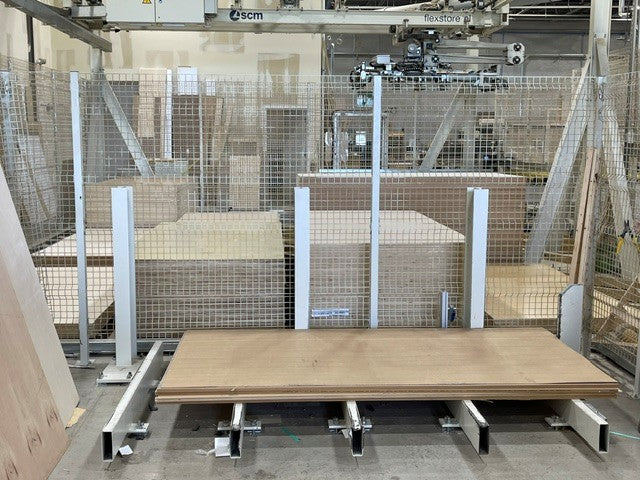

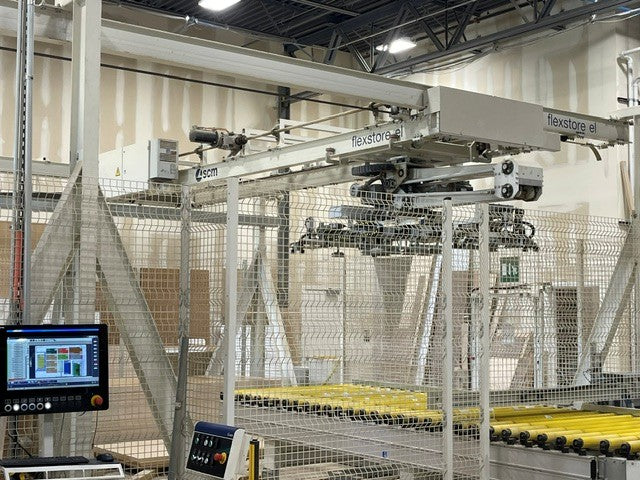

2. SCM Flexstore EL Automated Storage & Retrieval Gantry

• Drive System: 3-Axis Intelligent Overhead Travel

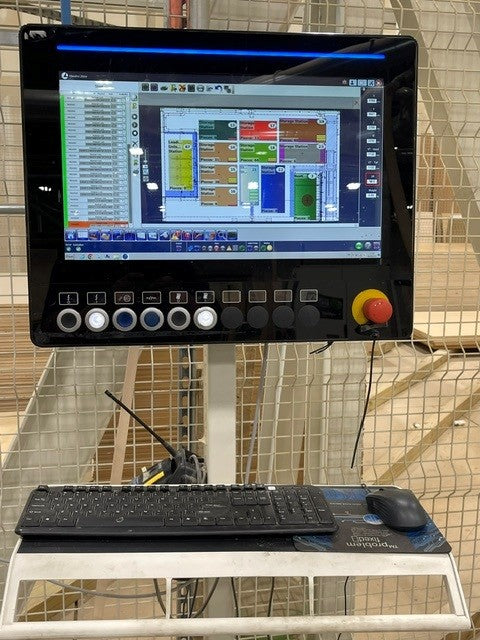

• Logistics Software: SCM Watch Store Management
• X / Y / Z Axis Speeds: Up to 80 / 80 / 30 m/min
• Material Handling Capability: Compatible with homogeneous stacks, mixed panel groupings, and automated sheet nesting integration.

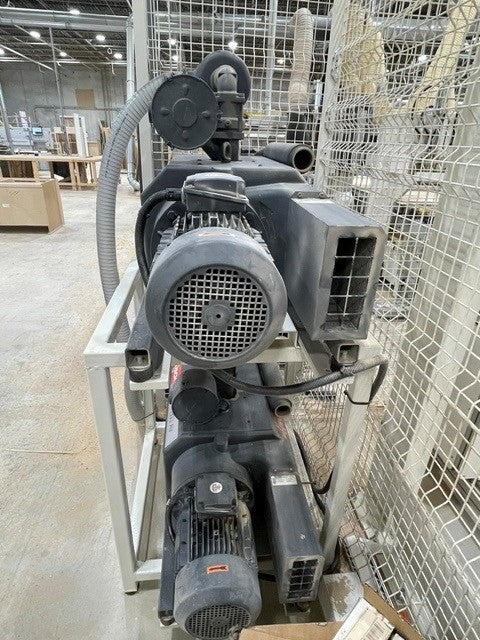

3. Vacuum System (Dual Busch Mink Claws)

• Pump Model: Busch Mink MM 1322 AV (2 Units Included)
• Technology: Dry, oil-free, non-contacting rotary claw
• Displacement Capacity (Per Pump): 212 CFM / 360 m³/h
• Nominal Motor Speed: 3,600 RPM
• Motor Power Output: 10.9 HP (8.0 kW)

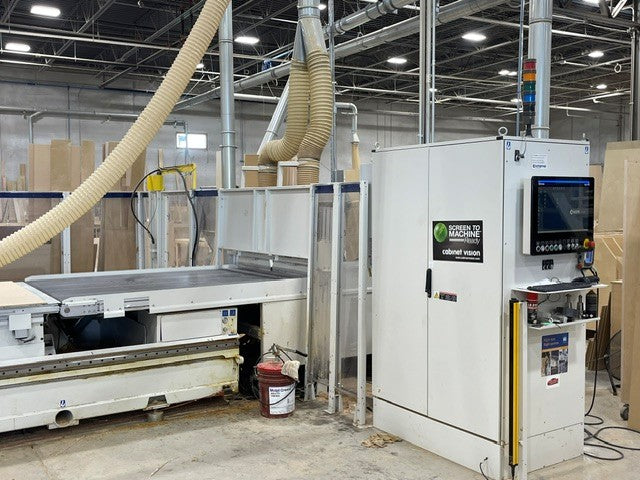

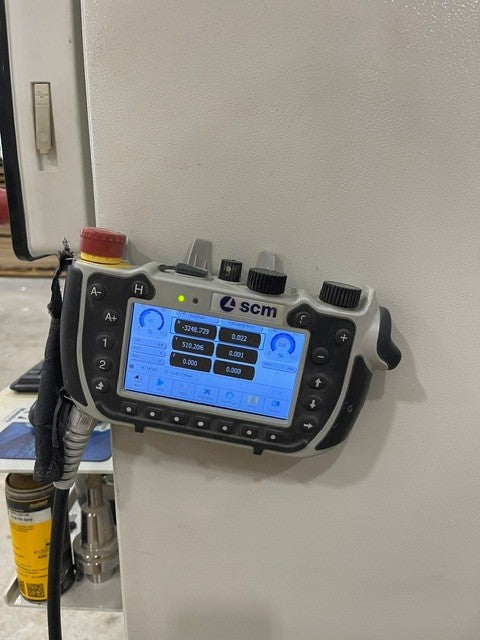

• Advanced Workspace Control: Includes the high-end, user-friendly SCM industrial control console featuring PC-based Maestro Active software for complete tooling layout, nested job queues, and real-time machine performance monitoring.

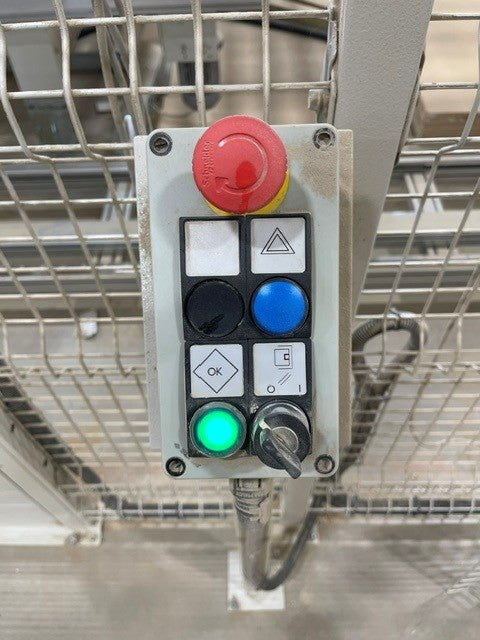

• Safety Integration: Fully enclosed work-zone safety perimeter fencing, light-curtain optoelectronic sensor arrays, and integrated bumper emergency systems for high-speed operation (up to 90 m/min) with safe operator access zones.

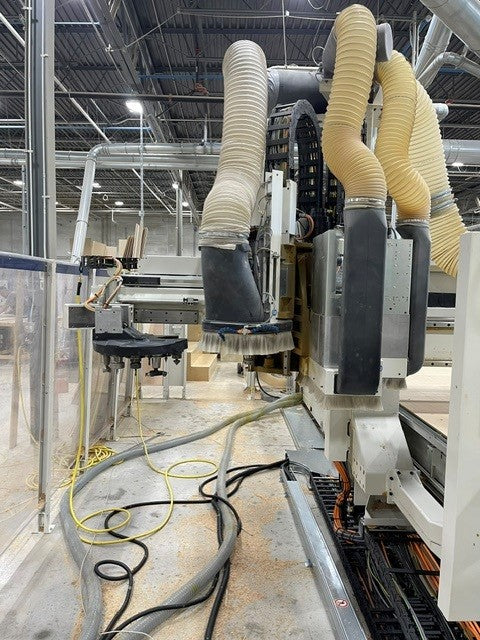

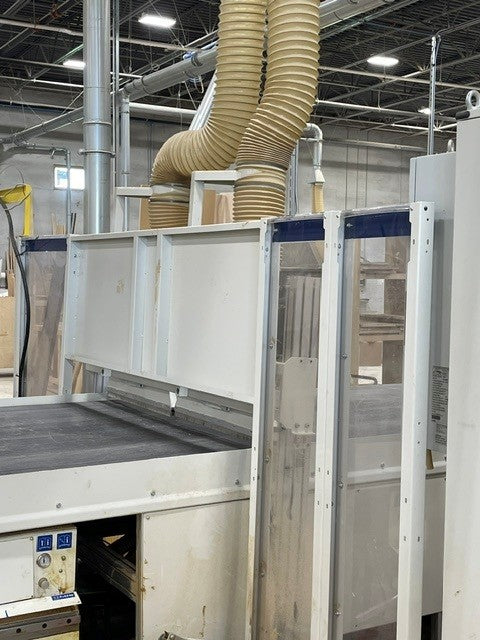

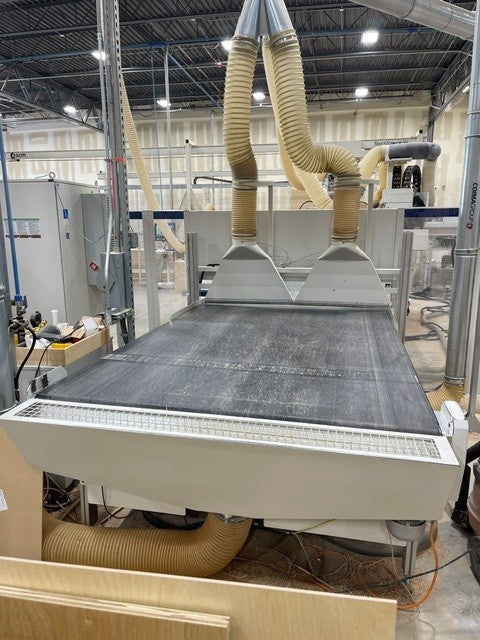

• Debris & Shavings Extraction: Direct pneumatic multi-port overhead extraction hood connections to clear dust instantly from the tool path, keeping nested panels spotless.
• Integrated Control Rack: Centralized, fully air-conditioned electrical control cabinet housing advanced servo drives and logic controllers.
