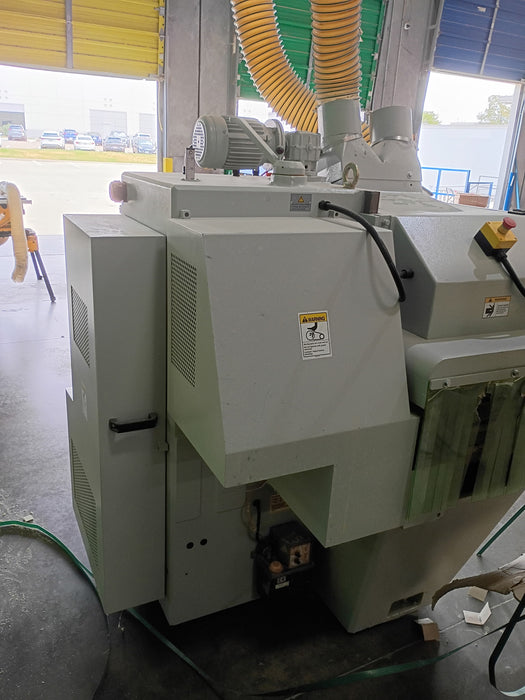

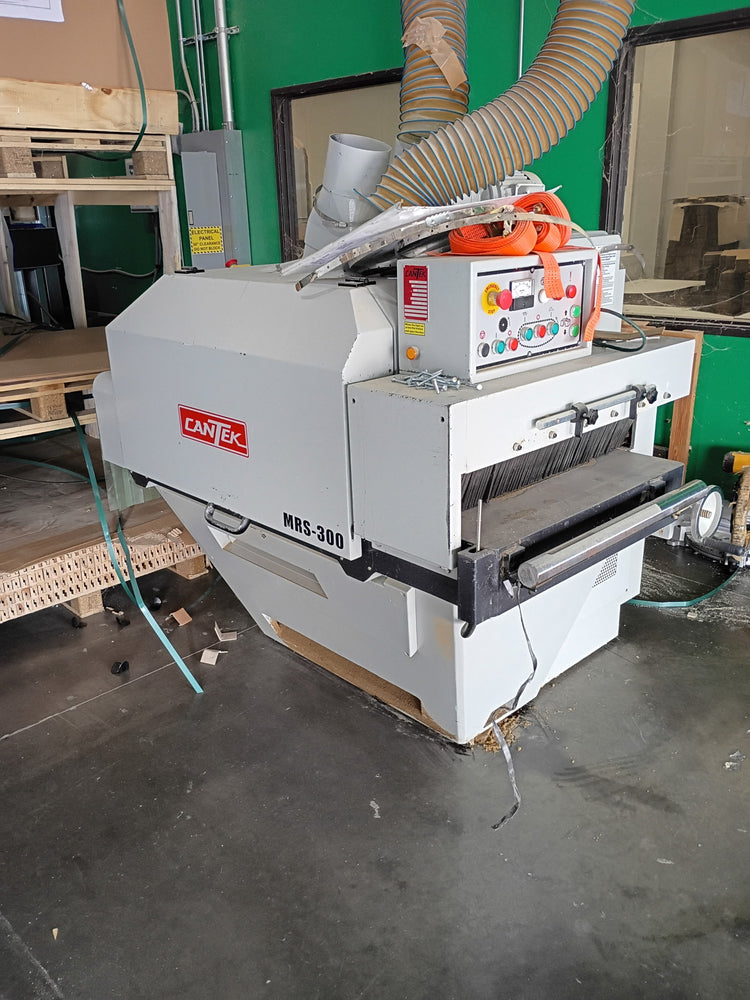

Used Cantek MRS300 Multi Blade Gang Ripsaw
Click or scroll to zoom
Tap or pinch to zoom
Used Cantek MRS300 Multi Blade Gang Ripsaw
Used Cantek MRS300 Multi Blade Gang Ripsaw

Used Cantek MRS300 Multi Blade Gang Ripsaw

by Cantek
$24,500.00
Payment Calculator
Financing Request
SKU Used-Cantek-MRS300

The Cantek MRS-300 is a heavy-duty production multi-blade gang ripsaw built with a rigid industrial cast iron machine frame designed for maximum structural stability and vibration damping. It features a straight-line caterpillar-style track feeding system to ensure precise straight-line ripping over heavy use. Equipped with a removable saw sleeve system, the machine minimizes downtime by allowing rapid tooling changeovers between different ripping operations.

  • Advanced Feed System: Straight-line caterpillar feeding utilizes a heavy guided track with cast iron chain blocks and heat-treated, precision-ground steel connecting pins.
  • Quick Change Setup: A removable saw sleeve configuration enables pre-setting blades, greatly accelerating operational transitions.
  • Automatic Lubrication: Features a centralized automatic lubrication system that coats the chain and race assembly to ensure longevity and consistent movement.
  • Star-Delta Starter: Includes an automatic Star-Delta starter for smooth, slow-speed motor initialization along with safe low-voltage controls.
  • Operator Safety: Outfitted with three comprehensive sets of anti-kickback fingers (two positioned at the top and one at the bottom) paired with CE-style European guard profiling.
  • Powered Adjustments: Motorized rise-and-fall controls handle the pressure rollers for swift workpiece thickness calibration.

Electrical & Power

  • Model: MRS-300
  • Serial Number: 21-312005
  • Voltage: 460 V
  • Phase/Frequency: 3 Phase / 60 Hz
  • Total Amps: 68.4 A
  • Total Horsepower: 52 HP
  • Largest Motor (Saw Arbor): 50 HP
  • Feed Motor: 2 HP
  • Thickness Adjustment Motor: 0.5 HP

Operating Capacities

  • Maximum Cutting Width: 11.8" (300 mm)
  • Maximum Working Thickness (15" Blade): 4.72" (120 mm)
  • Maximum Working Thickness (14" Blade): 4.33" (110 mm)
  • Minimum Workpiece Length (Standard): 23" (585 mm) (Can achieve 11.8" with optional short stock attachment)
  • Feed Speeds: Variable from 25 to 100 FPM (7.5 to 30 m/min)

Arbor & Blade Dimensions

  • Saw Arbor Speed: 3,800 RPM
  • Saw Blade Diameter Range: 8" to 15" (203 mm to 380 mm)
  • Saw Arbor Sleeve Outer Diameter: 70 mm with dual keyways
  • Inner Saw Arbor Diameter: 50 mm
  • Usable Saw Sleeve Arbor Length: 12" (305 mm)

Physical Properties & Dimensions

  • Table Size: 60" x 30" (1530 mm x 760 mm)
  • Table Height from Floor: 33.5" (851 mm)
  • Dust Hood Outlets: (2) 6" Diameter connections (150 mm)
  • Net Machine Weight: 4,510 lbs (2,050 kgs)
  • Overall Machine Dimensions: 82.68" L x 59" W x 56.5" H
