Used Laguna Dust Collector

Used Laguna Dust Collector

by Laguna
$1,150.00
SKU Used-JETDC-1900

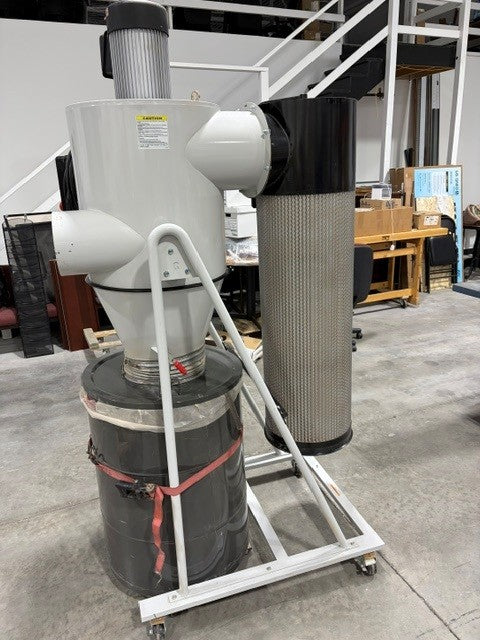

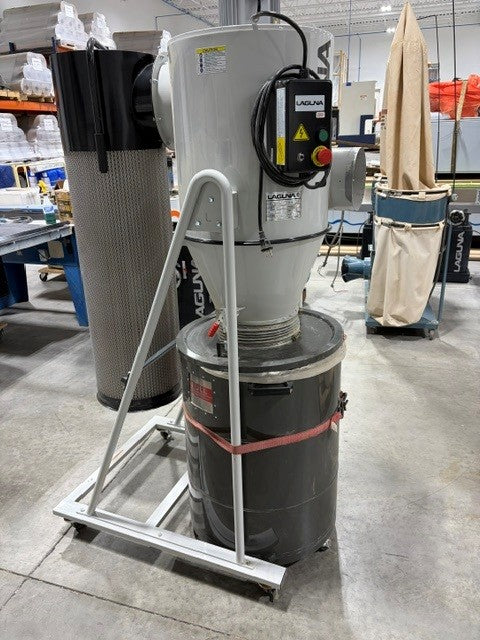

The Laguna MDC3560-0145 is an industrial-grade, two-stage mobile cyclone dust collection system engineered to maintain a safe, clean, and debris-free environment in high-demand commercial woodshops. Powered by a robust 3 HP TEFC motor, this unit uses cyclonic separation to drop larger wood chips and heavy debris into a high-capacity collection drum before the airflow ever reaches the filter. This process keeps the filter clear for longer periods, resulting in optimized air volume, sustained suction, and minimal maintenance. Built onto a rigid steel frame equipped with swivel casters, this heavy-duty system offers unexpected mobility for easy repositioning near your hardest-working machinery.

FOB: Wauconda, IL

  • Efficient Two-Stage Cyclonic Design: Heavies and chips drop directly into the waste barrel via centrifugal force, ensuring only ultra-fine particles travel to the filter canister.
  • High-Efficiency Canister Filtration: Outfitted with a premium pleated spun-bond polyester filter that traps 99.9% of airborne particles down to 1 micron.
  • Convenient Hand-Crank Cleaning System: Features an internal paddle agitator operated by an integrated top handle to easily clear dust buildup from the pleats straight down into the collection bag.

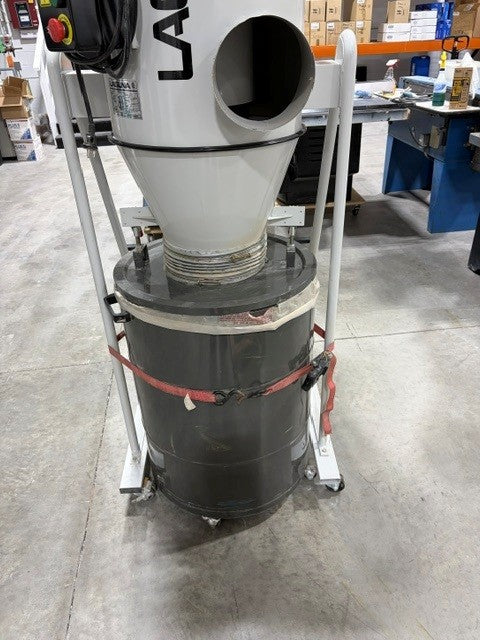

  • 60-Gallon High-Capacity Chip Drum: Large collection capacity minimizes the frequency of dump cycles, while independent casters and a quick-release mechanism ensure hassle-free emptying.
  • Direct 8 Inch Intake Throat: Features an open 8 inch throat design, providing a high-volume central intake point perfectly suited for a custom multi-machine port reduction manifold or main duct line.
  • Complete Shop Mobility: The entire unit rests on a durable, wheeled base frame allowing it to navigate smooth shop floors effortlessly.

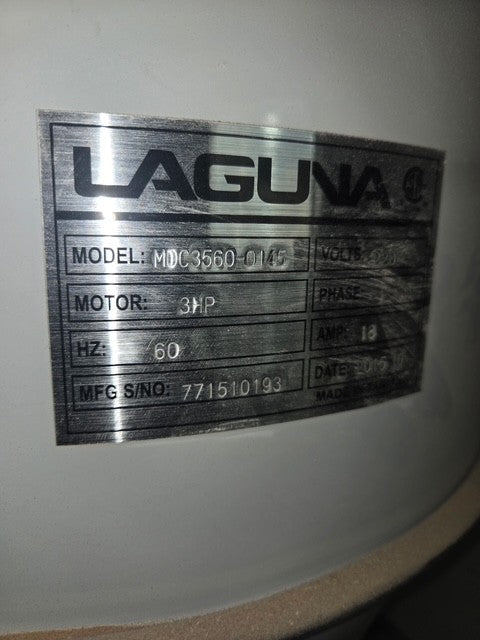

  • Model: MDC3560-0145
  • Motor Power: 3 HP TEFC (Totally Enclosed Fan Cooled)
  • Electrical Configuration: 220V / 60 Hz / 1 Phase
  • Running Amperage: 18 Amps
  • Recommended Circuit Breaker: 30 Amp
  • Suction Capacity: 2,125 CFM
  • Maximum Static Pressure: 15 inches of water
  • Main Inlet Size: 8 inch diameter (Open throat configuration)
  • Filtration Rating: 99.9% at 1 Micron
  • Drum Capacity: 60 Gallons
  • Sound Rating: 82 dB
  • Inlet Centerline Height: 56 inches
  • Height: 85 inches (7 feet 1 inch)
  • Machine Weight: 242 lbs
