Used Oliver 4230 Jointer

Used Oliver 4230 Jointer

by Oliver
$2,600.00
SKU

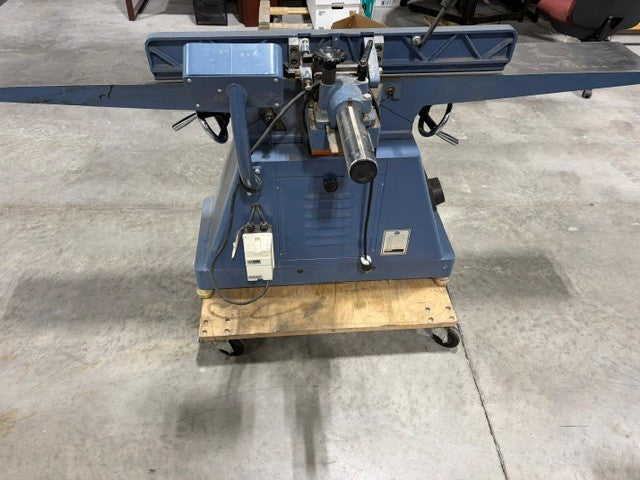

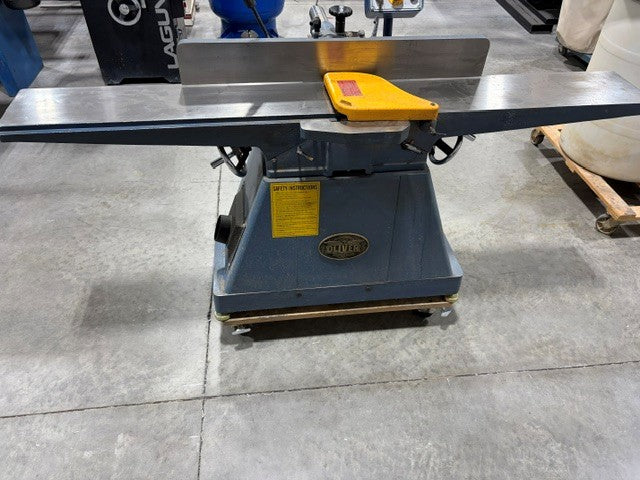

The Oliver Machinery Company Model 4230 is an 8-inch woodworking jointer engineered for professional shop production. This heavy-duty machine is constructed with a solid cast iron frame and precision-ground tables designed to provide flat, stable work surfaces for straightening and squaring long stock. It features a fully enclosed lower cabinet with a dedicated dust port to assist with workshop dust management. The control system consists of a standalone pedestal main control station featuring a key-switch lockout, a green start button, and a prominent red emergency stop slap switch for increased operator safety.

FOB: Wauconda, IL
  • Cast iron frame construction provides maximum dampening of vibrations and steady table support.
  • Long precision-ground cast iron infeed and outfeed tables provide ample surface area to handle extended lengths of lumber.

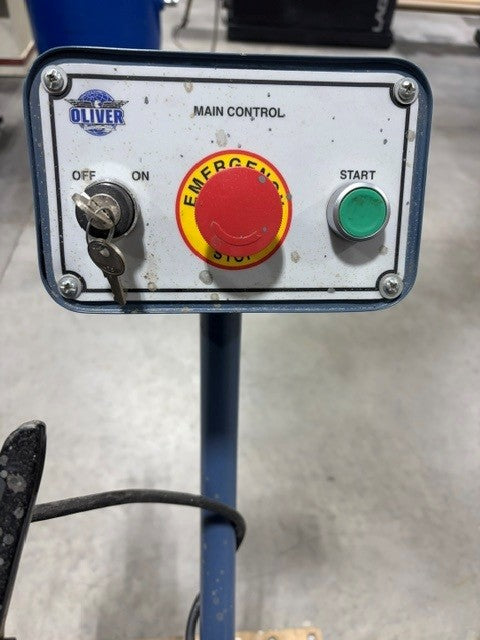

  • Separate, pedestal-mounted main control panel provides fast, unhindered access to the start and emergency stop buttons.
  • Keyed safety switch prevents unauthorized or accidental startup of the machinery.
  • Fully enclosed metal stand houses the internal motor and drive assemblies away from external debris.
  • Built-in side-mounted dust port allows direct connection to standard shop dust extraction lines.

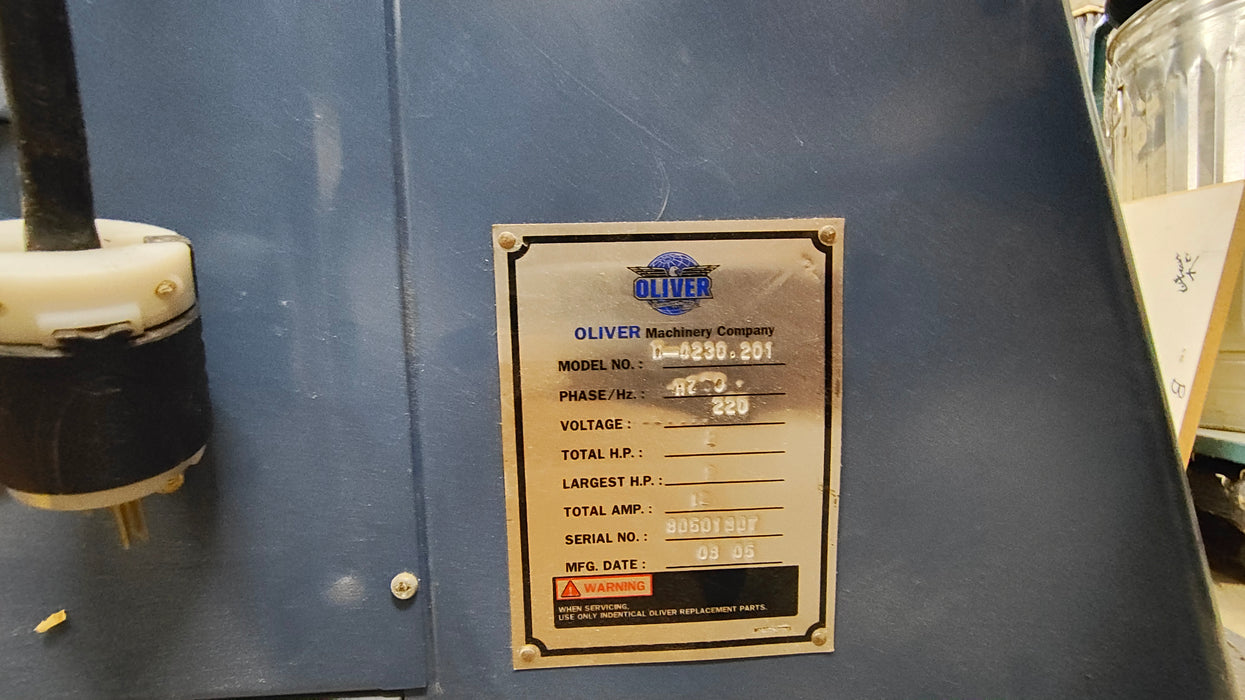

Attribute Specification
Manufacturer Oliver Machinery Company
Model Number 4230.201
Machine Type 8-Inch Jointer
Motor Horsepower 2 HP
Electrical Phase 1 PH
Frequency 60 Hz
Operating Voltage 220 V
Full Load Amperage 12 A
Cutterhead Speed 5,500 RPM
Number of Knives 54
Infeed Table Travel 1/2 Inch
Rabbeting Capacity 1/2 Inch
Manufacturing Date August 2005
Serial Number 050501307
