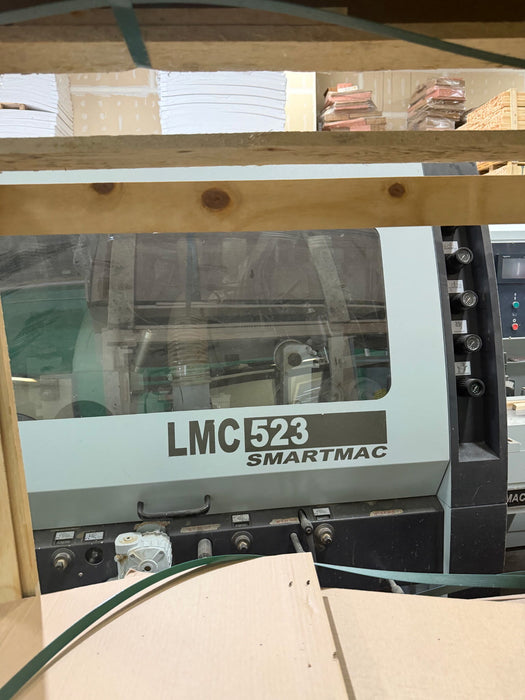

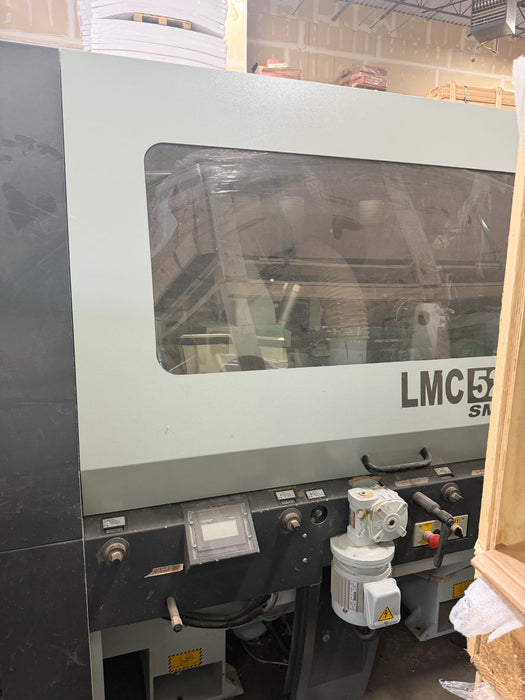

Used Leadermac LMC Smartmac 523S

Used Leadermac LMC Smartmac 523S

by Leadermac
$34,500.00
Payment Calculator
Financing Request
SKU Used-LMC-SMARTMAC523S

The Leadermac Smartmac LMC-523S is an industrial, high-efficiency 4-side through-feed moulder designed to optimize production capacity while delivering a superior surface finish. Built on a rigid, heat-treated one-piece cast iron frame, the machine provides maximum vibration damping to ensure deformation-free processing and extended bearing life. Its compact footprint makes it an ideal fit for precision industrial shops seeking versatile molding capabilities.

  • Cast Iron Machine Frame: Specially heat-treated one-piece frame provides high stability, rigidity, and outstanding vibration damping.
  • Hard-Chrome Plated Tables: All machine table surfaces and fences are thick hard-chrome plated for premium wear resistance and extended service life.
  • Cardan Shaft Drive System: Features a chainless, maintenance-free heavy-duty cardan drive system ensuring positive feed accuracy.
  • Pneumatic Roller Controls: Sectional pneumatic top hold-down pressure across feed rolls easily adjusts to provide optimal feed consistency across varying timber thicknesses.
  • Precision Spindles: High-speed spindles running on precision bearings produce exceptionally smooth woodworking results.

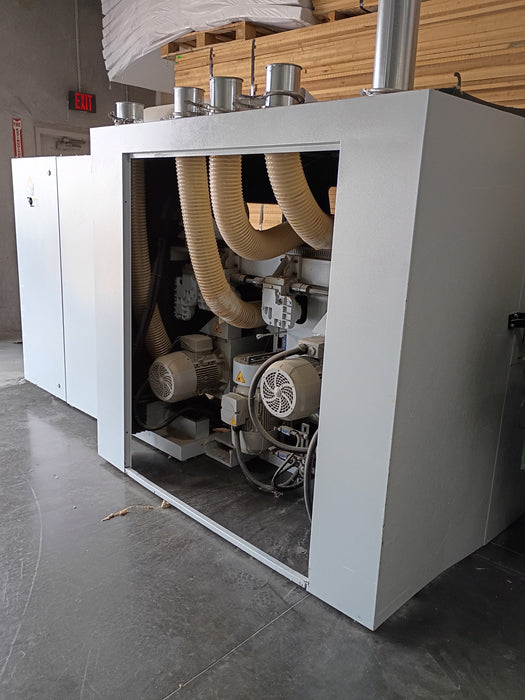

  • Safety Sound Enclosure: A robust, fully enclosed body acts as a chip guard and heavily isolates operational noise.

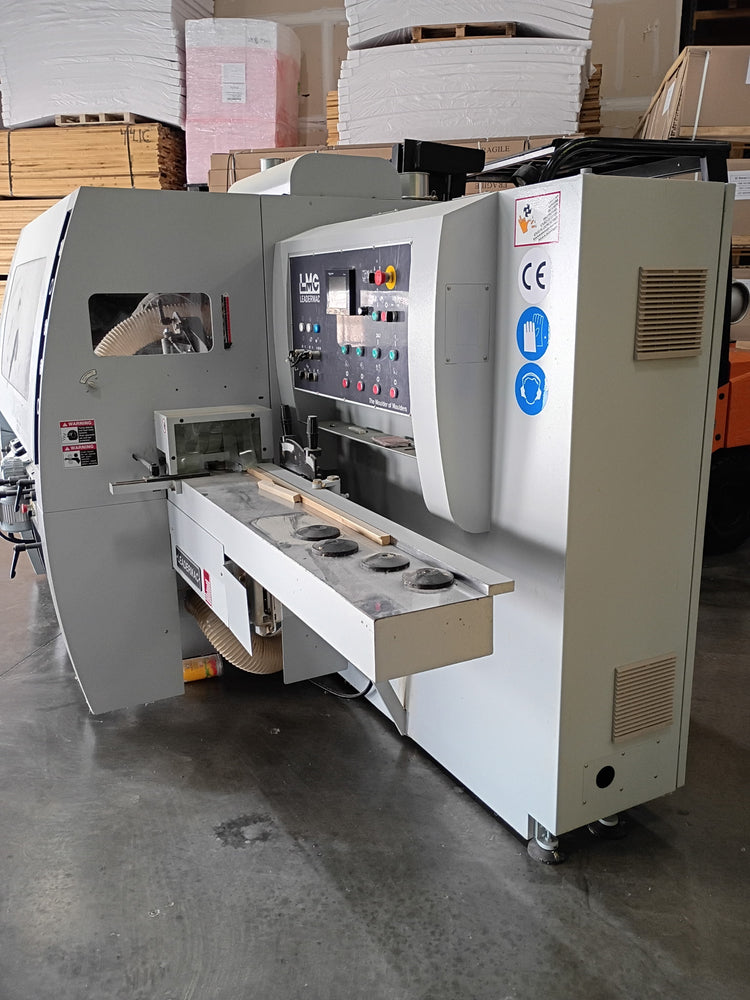

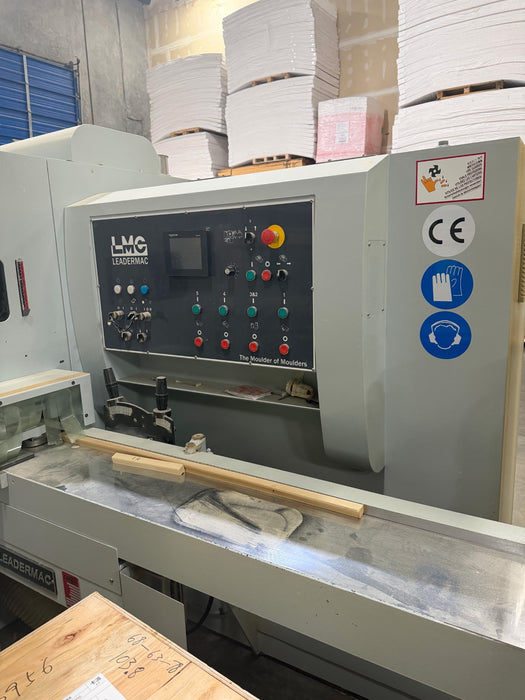

  • Convenient Adjustments: Quick motorized setting adjustments for machine working height and width are operated directly via the centralized control panel.
Specification Value
Model LMC-523S
Spindle Capacity 5 Spindles
Spindle Diameter 40 mm
Spindle Speed 6,000 RPM
Total Horsepower 54 HP
Largest Motor 15 HP
Total Amps 70 A
Voltage / Electrical Rating 460 V / 60 Hz
Max Working Width 230 mm (9.05")
Max Working Thickness 125 mm to 150 mm (4.9" to 5.9")
Standard Infeed Table Length 2,000 mm (78")
Feed System Drive Chainless Cardan Shaft Drive
Variable Feed Speed Up to 24 m/min (80 FPM)
Certification Compliance CE Mark Approved
