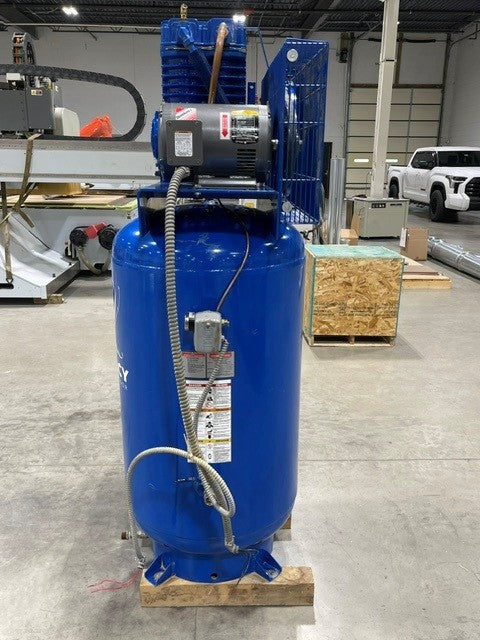

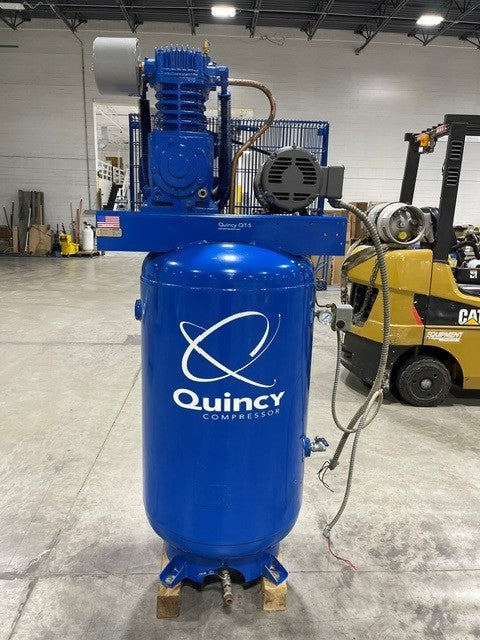

Used Quincy QT5 Air Compressor, 5HP

System & Pump

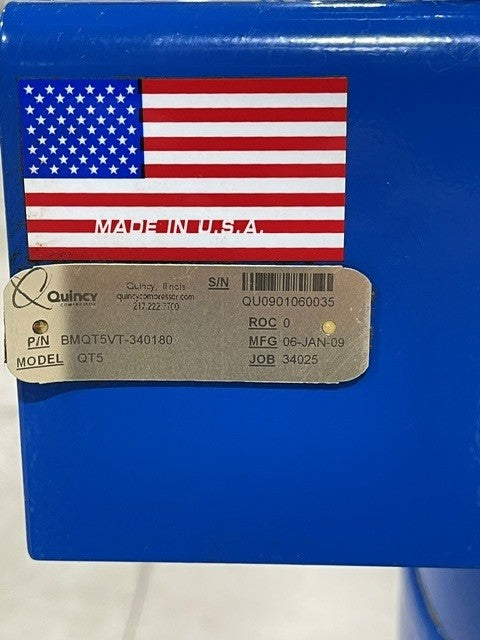

• Brand: Quincy Compressor
• Model: QT-5 (P/N: BMQT5VT-340180)
• Serial Number: QU0901060035
• Date of Manufacture: January 06, 2009
• Configuration: Vertical
• Tank Size: 80 Gallon (ASME Certified)
• Pump Type: Heavy-Duty, 2-Stage Cast Iron

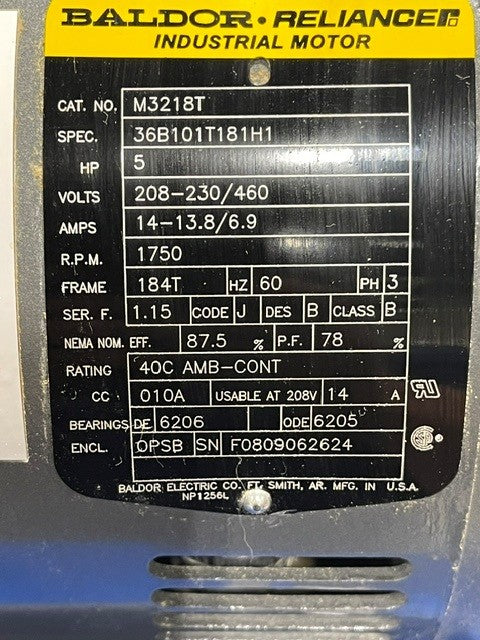

Motor Details (Premium Baldor-Reliance)

• Motor Brand: Baldor-Reliance Industrial Motor
• Catalog No: M3218T
• Horsepower: 5 HP
• Phase: 3-Phase (PH 3)
• Voltage: 208-230 / 460 V (Tri-Voltage)
• Amperage: 14–13.8 / 6.9 A
• RPM: 1750 RPM
• Frame Size: 184T
• Frequency: 60 Hz
• Enclosure: OPSB (Open Drip Proof)

• Commercial-Grade Power: Equipped with a 3-Phase Baldor motor for maximum energy efficiency, cooler operational temperatures, and an extended service lifespan compared to single-phase units.
• Cast-Iron Construction: The QT-5 pump features a cast-iron cylinder and flywheel, engineered to run cooler and deliver a higher CFM-per-horsepower ratio.
• Low-RPM Operation: Running at a lower RPM reduces wear, minimizes heat buildup, and significantly dampens operational noise in a busy shop environment.

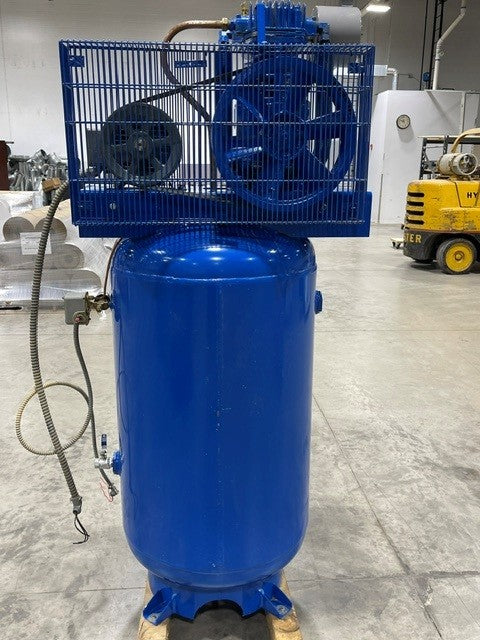

• Safety & Compliance: Includes a fully enclosed, heavy-duty wire belt guard to meet safety standards.
• Condition Notes: Fully intact and visually excellent with crisp paint and clear data labeling. Wire leads are ready for integration into your facility’s electrical conduit or control box.
