Used Ritter R113 Line Bore Machine

Used Ritter R113 Line Bore Machine

by Ritter
Sold out
$3,500.00
SKU UsedRitterR113

This Ritter R-113 manual single-row line boring machine is designed for fast, accurate, and repeatable drilling patterns on 32mm centers. It eliminates the need for manual templates that wear out and lose alignment over time. The machine allows for simple adjustments of entry and exit points, featuring centering index pins on both sides and an adjustable rear fence for edge offsetting. This particular unit is a clean, two-owner machine that has seen very little to no use throughout its entire lifespan.

FOB: Wauconda, IL

  • 13 vertical gear-driven spindles on 32mm centers
  • 7 right-hand and 6 left-hand spindle configuration
  • 60-inch back fence assembly with 4 adjustable stops
  • Dual right-hand and left-hand work stations
  • 2 spring-loaded indexing pins for repeating hole patterns
  • 2 spring-operated material hold-down clamps
  • Manually actuated boring cycle with spring return up-stroke
  • 10mm bored collets with set screws
  • Manual motor controls

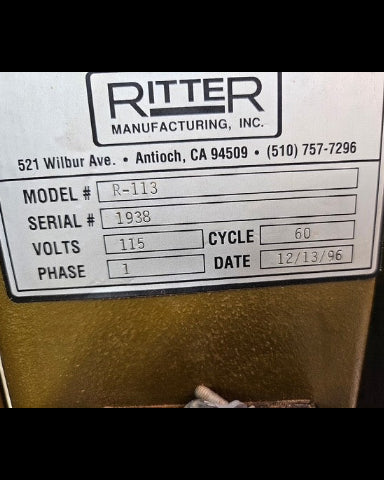

  • Manufacturer: Ritter Manufacturing, Inc.
  • Model: R-113
  • Serial Number: 1938
  • Manufacture Date: 12/13/1996

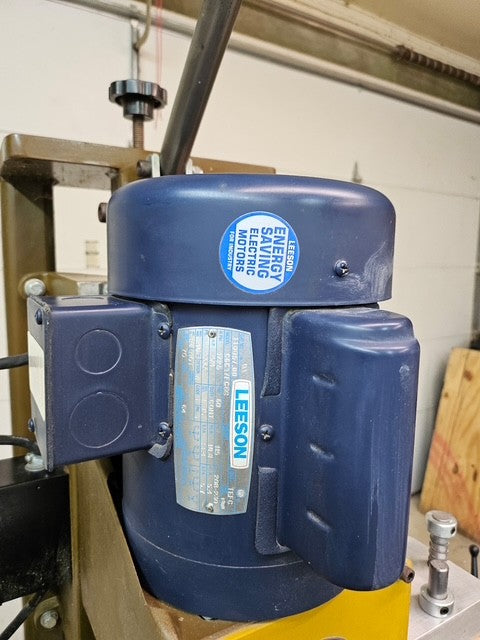

  • Spindle Drive Motor: 0.75 HP
  • Voltage: 115V
  • Phase: 1-Phase
  • Frequency: 60 Hz
  • Work Table Surface Area: 20 inches x 48 inches
  • Throat Capacity: 8 inches
  • Maximum Material Thickness: 1.25 inches
  • Overall Machine Footprint: 38 inches x 60 inches
  • Work Height: 33.25 inches
  • Approximate Weight: 508 lbs
