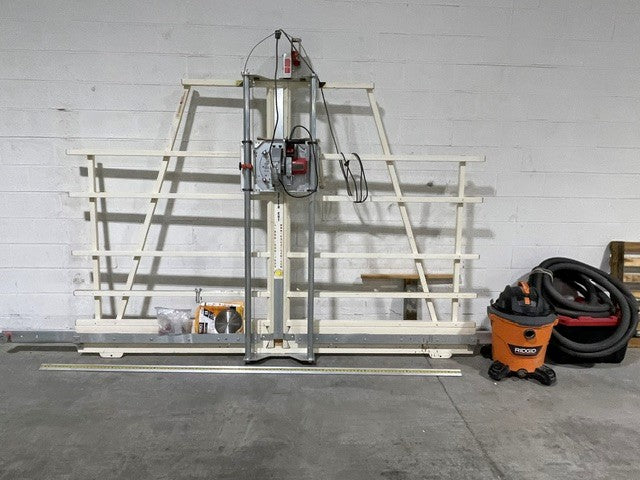

The Safety Speed H5 Vertical Panel Saw is a full-sized industrial machine optimized for cabinet makers, woodworkers, and sign builders. Designed to handle large sheets up to 5 feet tall, it allows a single operator to load and cut material safely and squared within 1/32 of an inch.
| Attribute | Specification Details |
|---|---|
| Max Crosscut Height | 64 inches (1625 mm) |
| Max Rip Cut Length | Unlimited |
| Max Cut Depth/Thickness | 1-3/4 inches (45 mm) |
| Cut Accuracy | Within 1/32 inch (0.8 mm) straight & square |
| Motor | 3.25 HP, 15 Amp, 120V Industrial (220V alternative available) |
| Motor Brand | Milwaukee Tool |
| Saw Blade Diameter | 8 inches (210 mm) with 5/8" Bore |
| Frame Dimensions | 120" Length × 83" Height × 11" Depth |
| Total Weight | 298 lbs. (Assembled) |
| Material Support Base | 14 bottom rollers |
| Daily Usage Rating | Intermittent duty, ideal for 1–3 hours daily |
- Counterbalance System: The central saw carriage features a built-in spring-loaded counterbalance system. This neutralizes the downward weight of the saw, allowing the operator to lift and glide it up and down the tubes with minimal effort.
- Guide Mechanism: The system relies on 1-3/4" zinc-plated steel guide tubes paired with 4 self-lubricating Nylatron roller bearings. This design actively repels fine wood dust, keeping the travel track smooth without oiling.
- Safety Certifications: The H5 unit is TUV certified to meet UL/CSA standards, ensuring strict factory electrical and mechanical hazard compliance.
- Material Versatility: Beyond plywood and MDF, this saw can process acrylic, thin plastics, aluminum composite panels (ACM), and layered composites when equipped with the correct specialized 8-inch blade.
- Standard Rulers: The frame comes integrated with adjustable vertical and horizontal tape measures to speed up repeat sizing passes without pre-marking sheets
