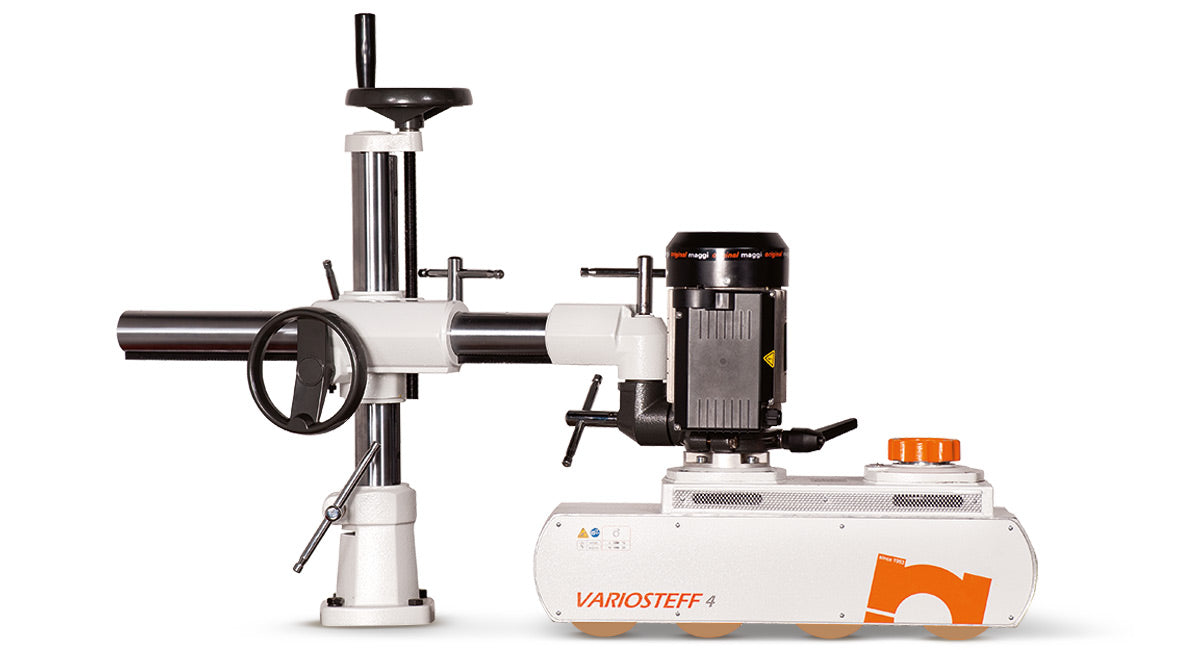

Vario-Steff 4


(4) rollers, variable speed from 9 to 59 FPM; 1 HP motor; 4-3/4" roller diameter; 2-1/4" roller width; speed adjustment system using a belt on a conical aluminum pulley; turn knob for required speed without the need to change the position of the gears; min - max plate indicates the rotation direction to obtain the required speed.  Machine weight: 155 lbs.  Add $100 for 220 V single phase option.

Roller/Belt Vertical Range of Motion 1 inch.
Electrostatic paint finish.
Sintered case hardened gears.
Bronze alloy main drive gear.
Natural rubber, 60 shore hardness rollers/belts. (Polyurethane belts/rollers and steel rollers also available).
Calibrated spring support for roller adherence.
